Build your own GTE SPORT 2020 steering wheel!
After purchase you will be able to download all the files provided for this wheel.
Preview video:
https://youtu.be/i9nnuGh1H4Q
Features:
- 5mm carbon fiber front plate (can also be made from aluminium)

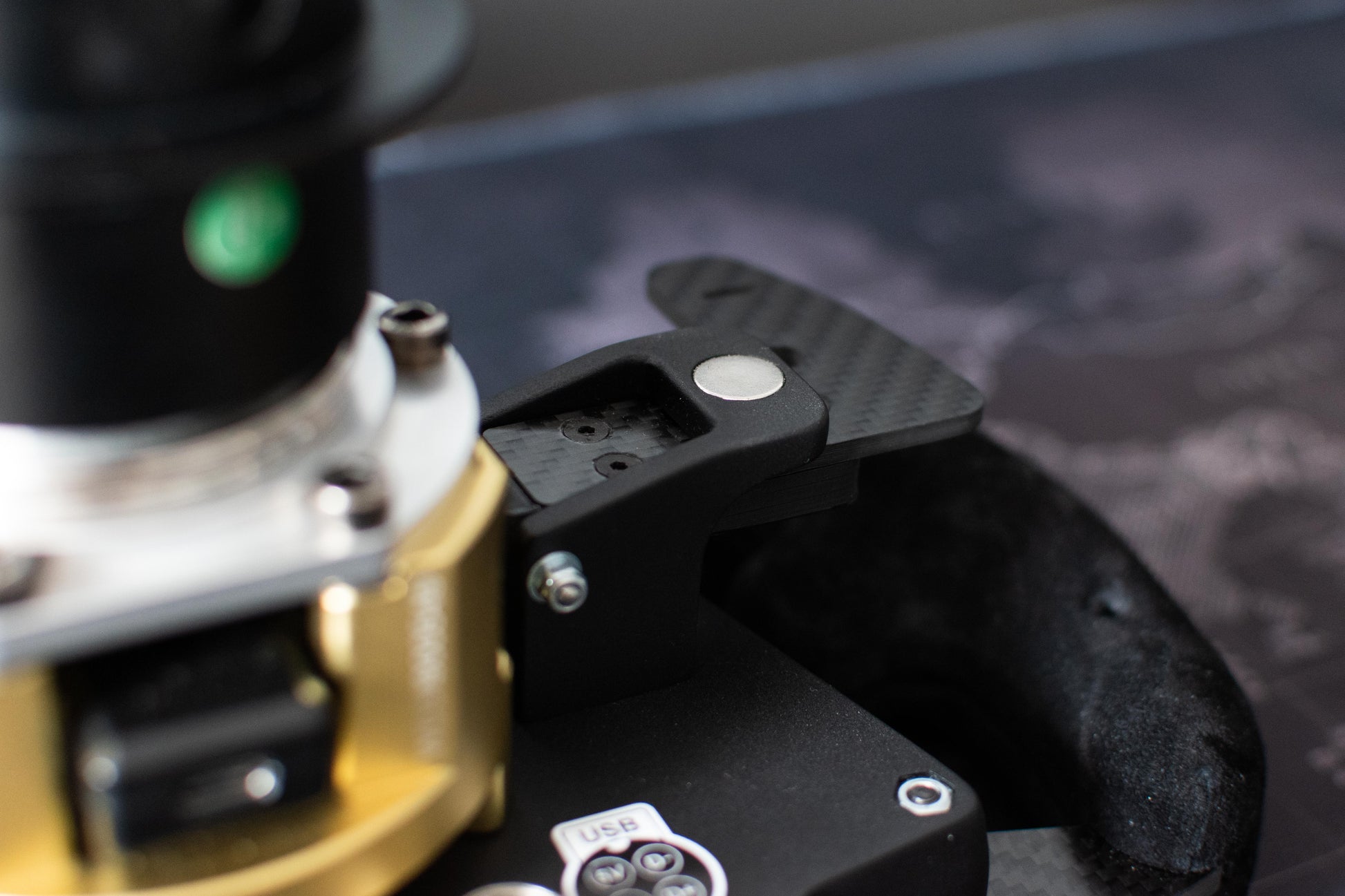

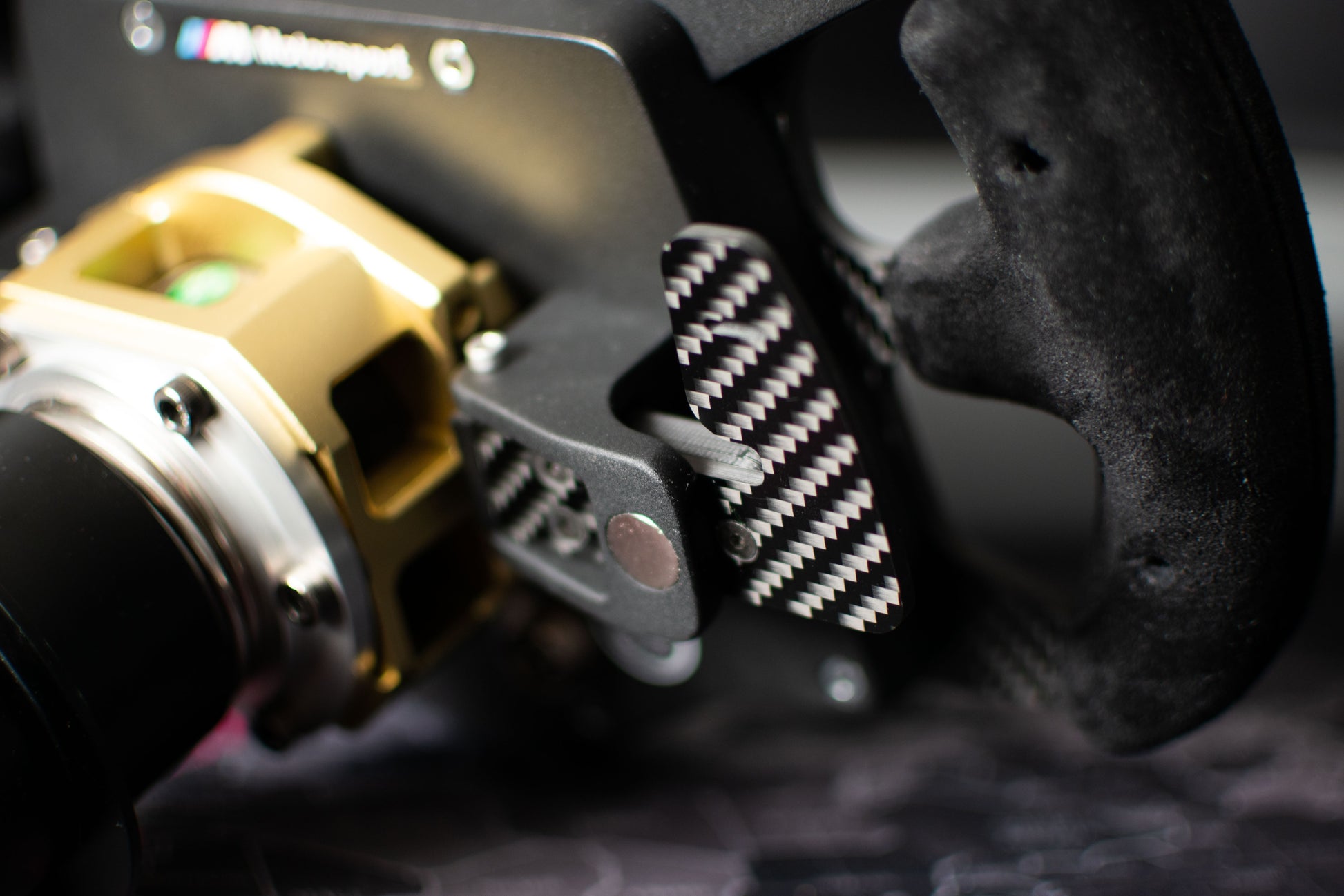

- Magnetic shifters
- Seude leather grips
- 300mm diameter
- 950g without QR (1150g if the front plate made from alu)
- 70mm PCD 3x M5 quick release compatibility
- 44 inputs ( 12 position switch and "Multi" rotary encoder are working together as 12x2 inputs)
- No custom PCB required, based on STM32F103 board
Design content:
- Full building guide (14 pages)
- Files for 3D printing (.stl, printable on 200x200mm bed)
- Files for water cutting or cnc machining front plate and shifter paddles (.dxf)
- Full BOM (bill of material, eg. screws, buttons, magnets, ...)
- Firmware for PCB (also source files if you want to change something)
- Sticker designs
- Wiring schematic
PERSONAL USE LICENSE ONLY
The files are for personal use only, non commercial, not for resale!
You cannot sell the digital model, a derivative or adaptation of the model, nor can you sell prints of the model.
This is not physical product. Digital downloads will be sent via email after completing payment.
