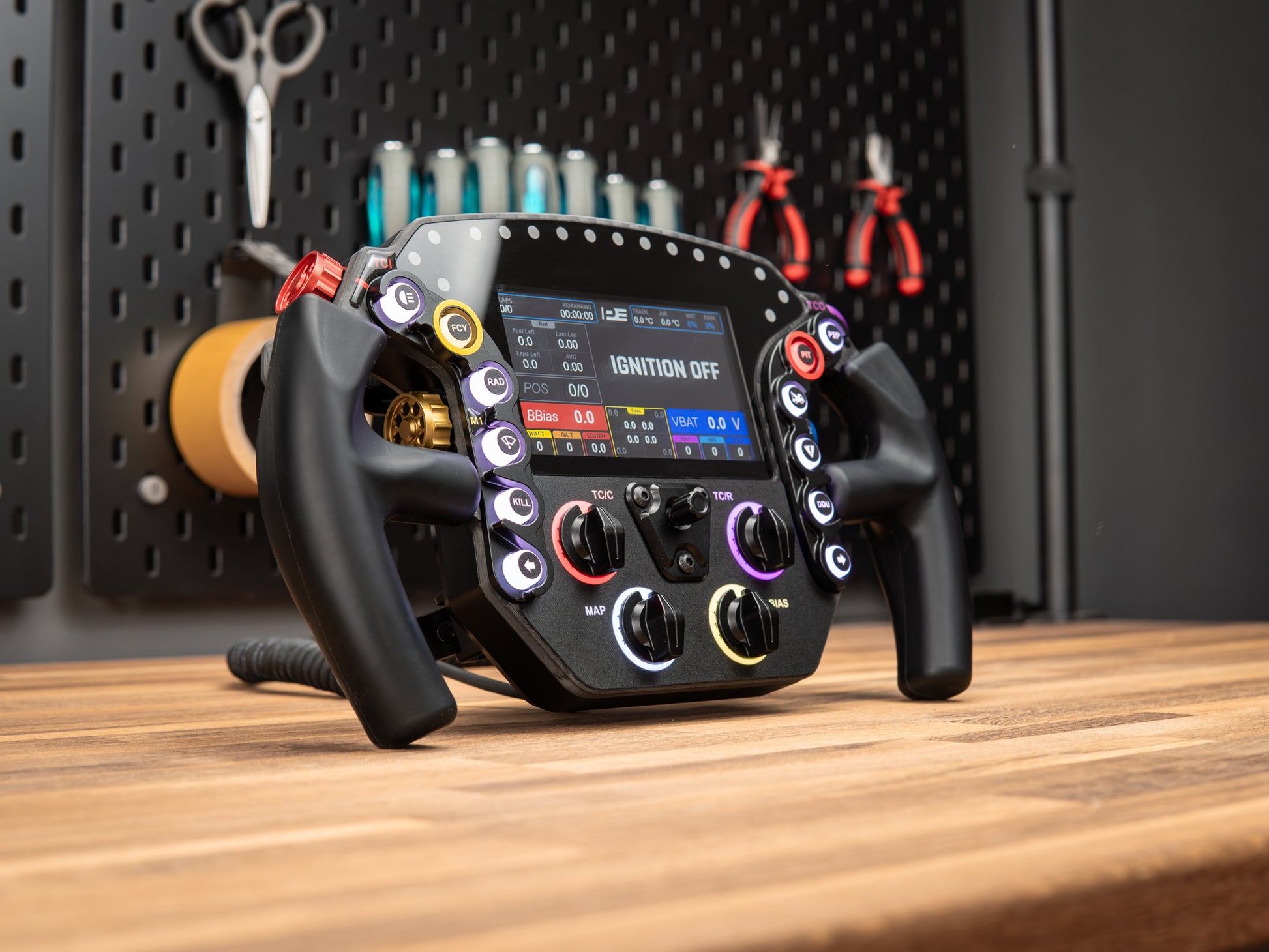

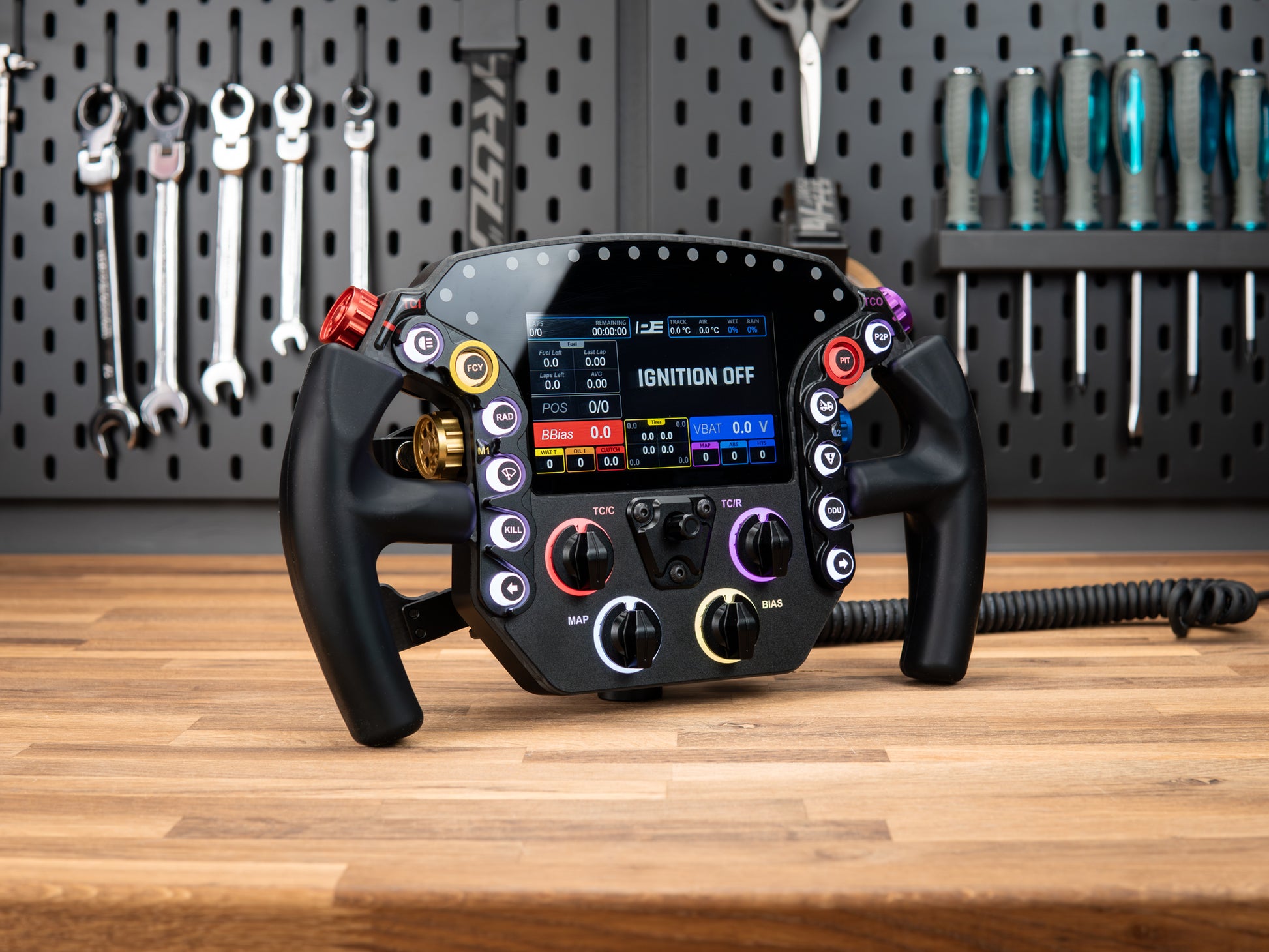

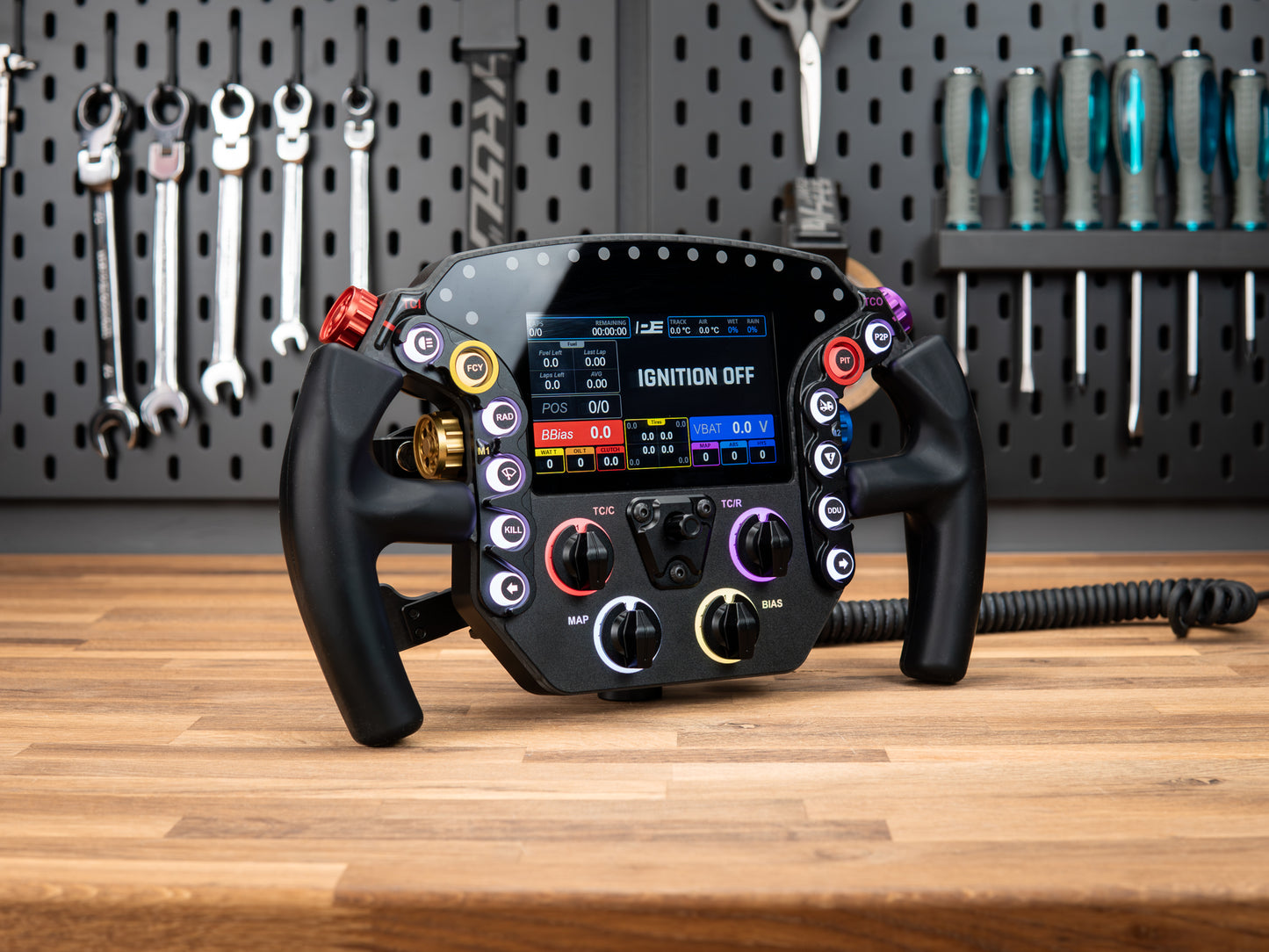

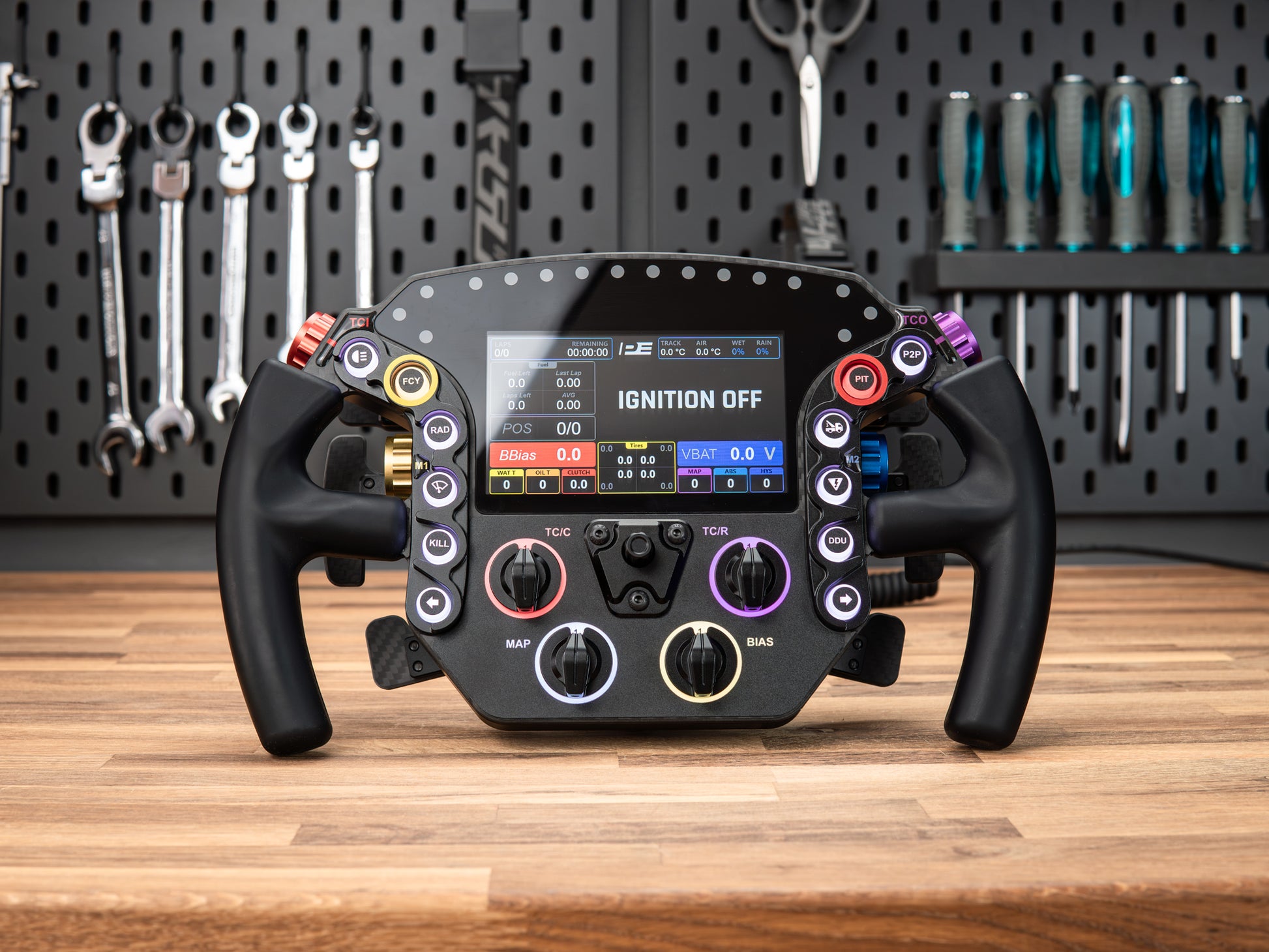

Pokornyi Engineering GTE PRO DIY steering wheel front

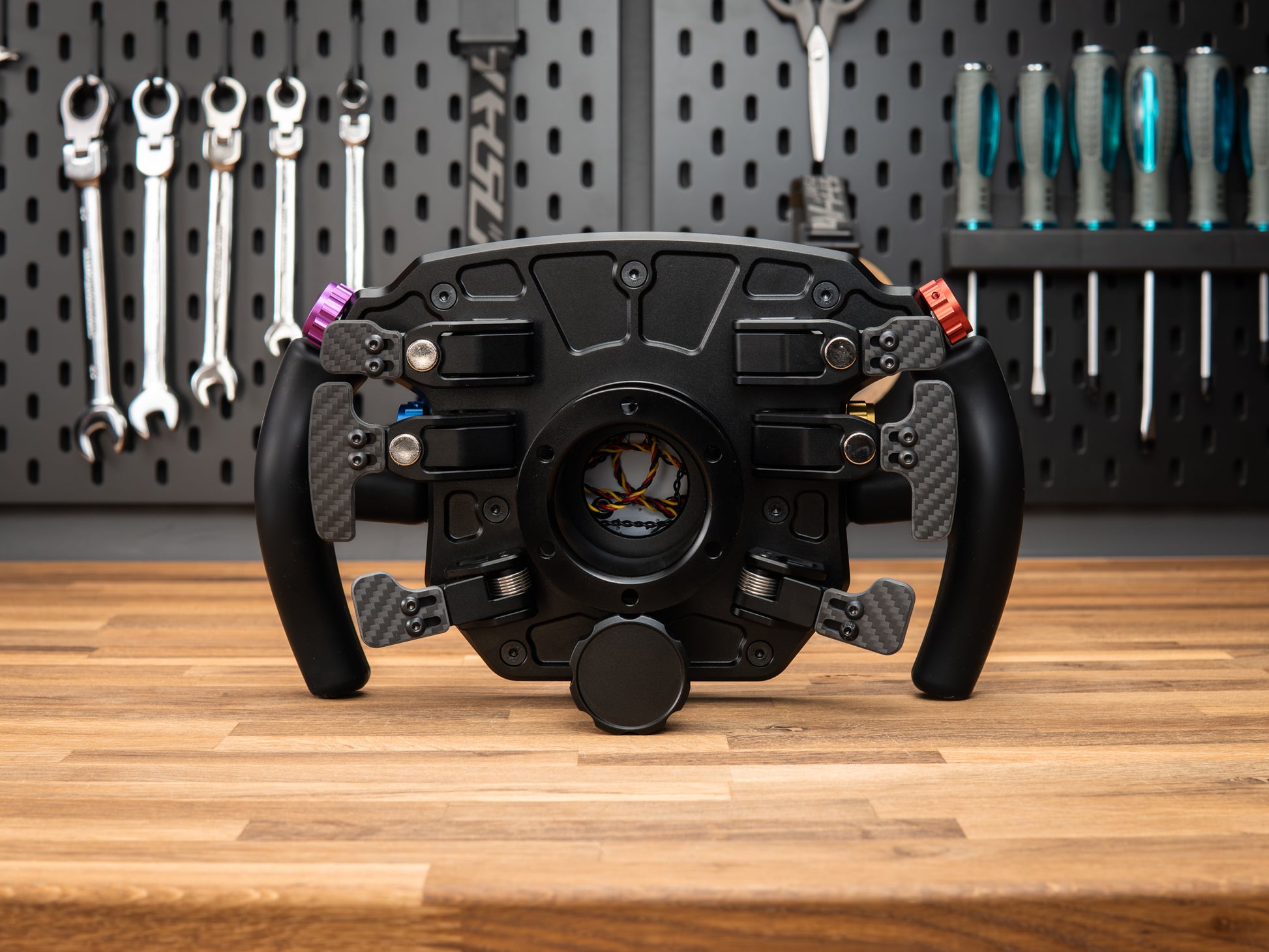

Pokornyi Engineering GTE PRO DIY steering wheel back
Pokornyi Engineering GTE PRO DIY steering wheel back

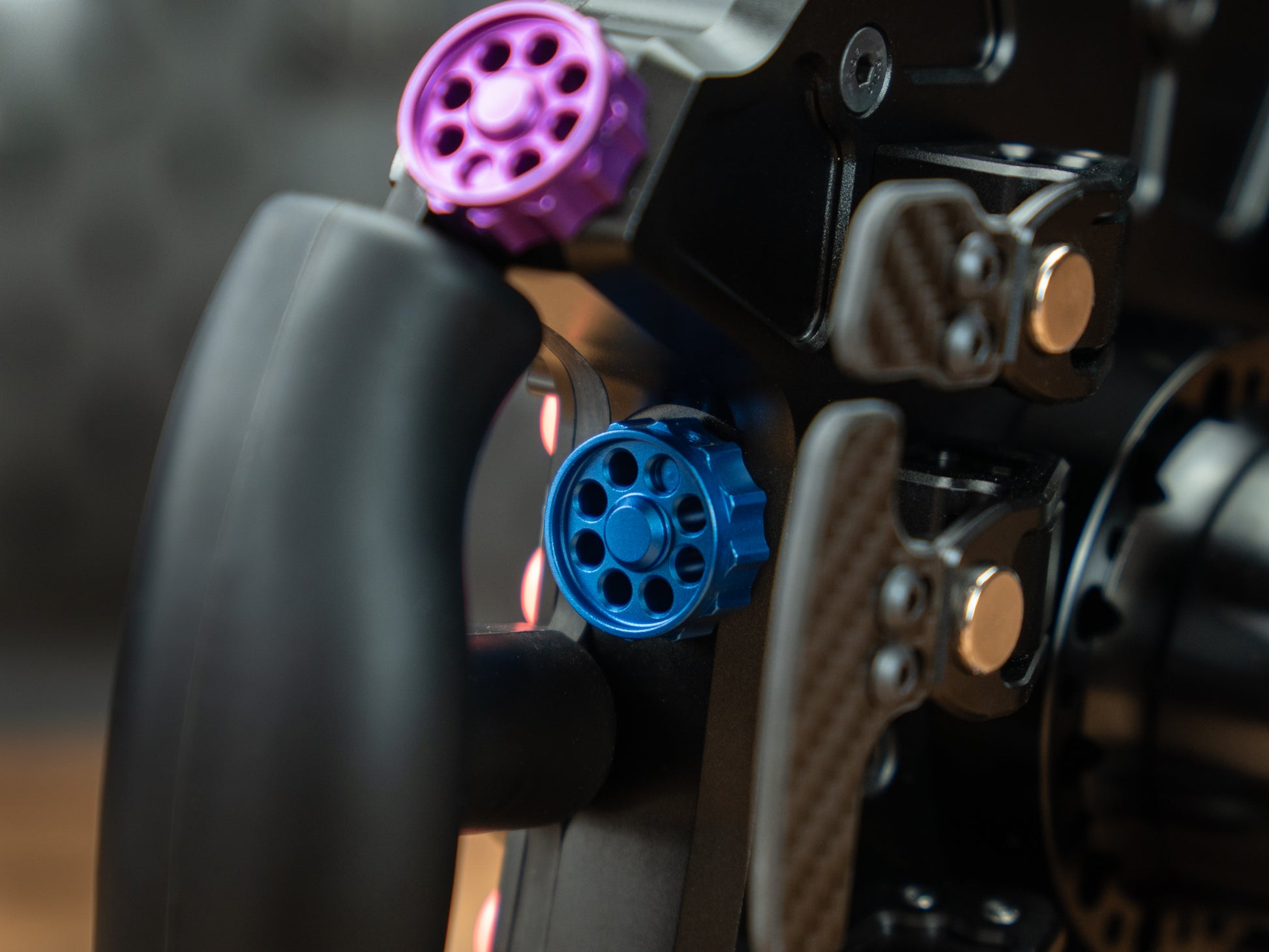

Pokornyi Engineering GTE PRO DIY steering wheel magnetic paddle shifter
Pokornyi Engineering GTE PRO DIY steering wheel USB connector

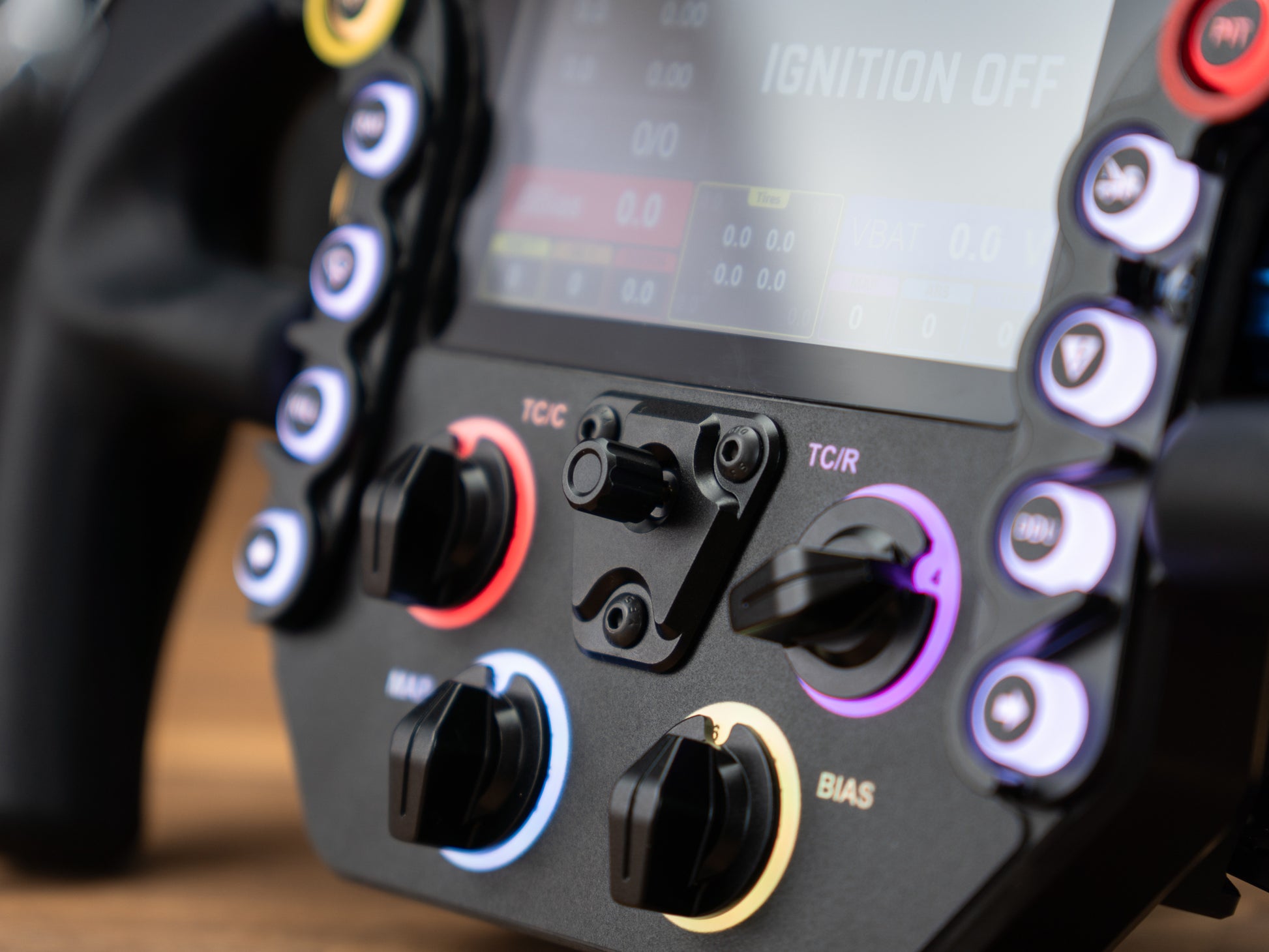

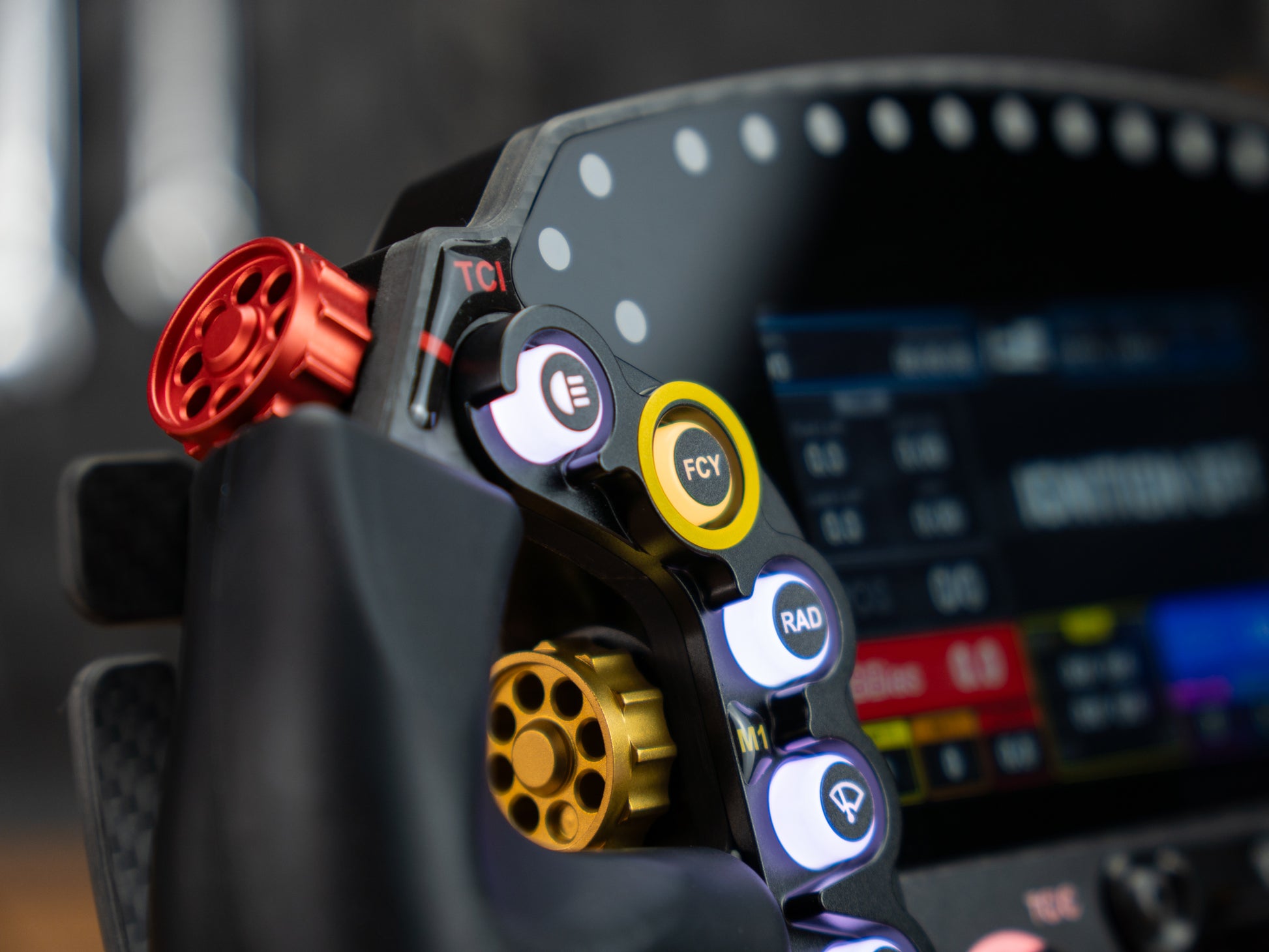

Pokornyi Engineering GTE PRO DIY steering wheel buttons
Pokornyi Engineering GTE PRO DIY steering wheel buttons
  • Load image into Gallery viewer, Pokornyi Engineering GTE PRO DIY steering wheel front
  • Load image into Gallery viewer, Pokornyi Engineering GTE PRO DIY steering wheel back
  • Load image into Gallery viewer, Pokornyi Engineering GTE PRO DIY steering wheel back
  • Load image into Gallery viewer, Pokornyi Engineering GTE PRO DIY steering wheel magnetic paddle shifter
  • Load image into Gallery viewer, Pokornyi Engineering GTE PRO DIY steering wheel USB connector
  • Load image into Gallery viewer, Pokornyi Engineering GTE PRO DIY steering wheel buttons
  • Load image into Gallery viewer, Pokornyi Engineering GTE PRO DIY steering wheel buttons

GTE PRO DIY files

Regular price
$40.00
Sale price
$40.00
Regular price
Sold out
Unit price
per
inc. VAT for EU

Build your own GTE PRO steering wheel!

After purchase you will be able to download all the files provided for this wheel.

Pre-cut carbon plates available in the TFS webshop.
The files and assembly manual should still be purchased here. All the files for carbon parts are still included in the package also.

Features:

  • 300mm diameter
  • 5" 800x480 LCD display
  • Seude leather grips
  • Full metal structure (carbon fiber composite can also be used)
  • Metal structure magnetic shifter
  • 8 rotary encoder (4 front + 4 side)
  • Compatible with 70mm PCD QRs

Design content:

  • Files for 3D printing (.stl, printable on min. 200x200mm bed)
  • Files for water cutting or cnc machining (.dxf)
  • Full assembly .step file
  • Nextion display template files
  • Plexiglass fabrication files (laser cut and direct printing)
  • Full BOM (parts required, eg. screws, connectors, magnets.)
  • Ready to order files for own PCB design with BOM and schematic
  • Firmware for PCB (also source files if you want to change something)
  • Simplified PCB design (This is daughater board for buttons, LEDS, encoders, so you can use this with arduino, etc.) (I recommend to use this if you don't have a lot of electronics experience!)
  • Sticker designs
  • Assembly guide with tips and photos to help building
  • 4 different front rotary knob design

PERSONAL USE LICENSE ONLY

The files are for personal use only, non commercial, not for resale!

You cannot sell the digital model, a derivative or adaptation of the model, nor can you sell prints of the model.

This is not physical product. Digital downloads will be sent via email after completing payment.
Photos are only example of one build.
