GT2 PLATE DIY files

Regular price
$25.00
Sale price
$25.00
Regular price
Sold out
Unit price
per
inc. VAT for EU

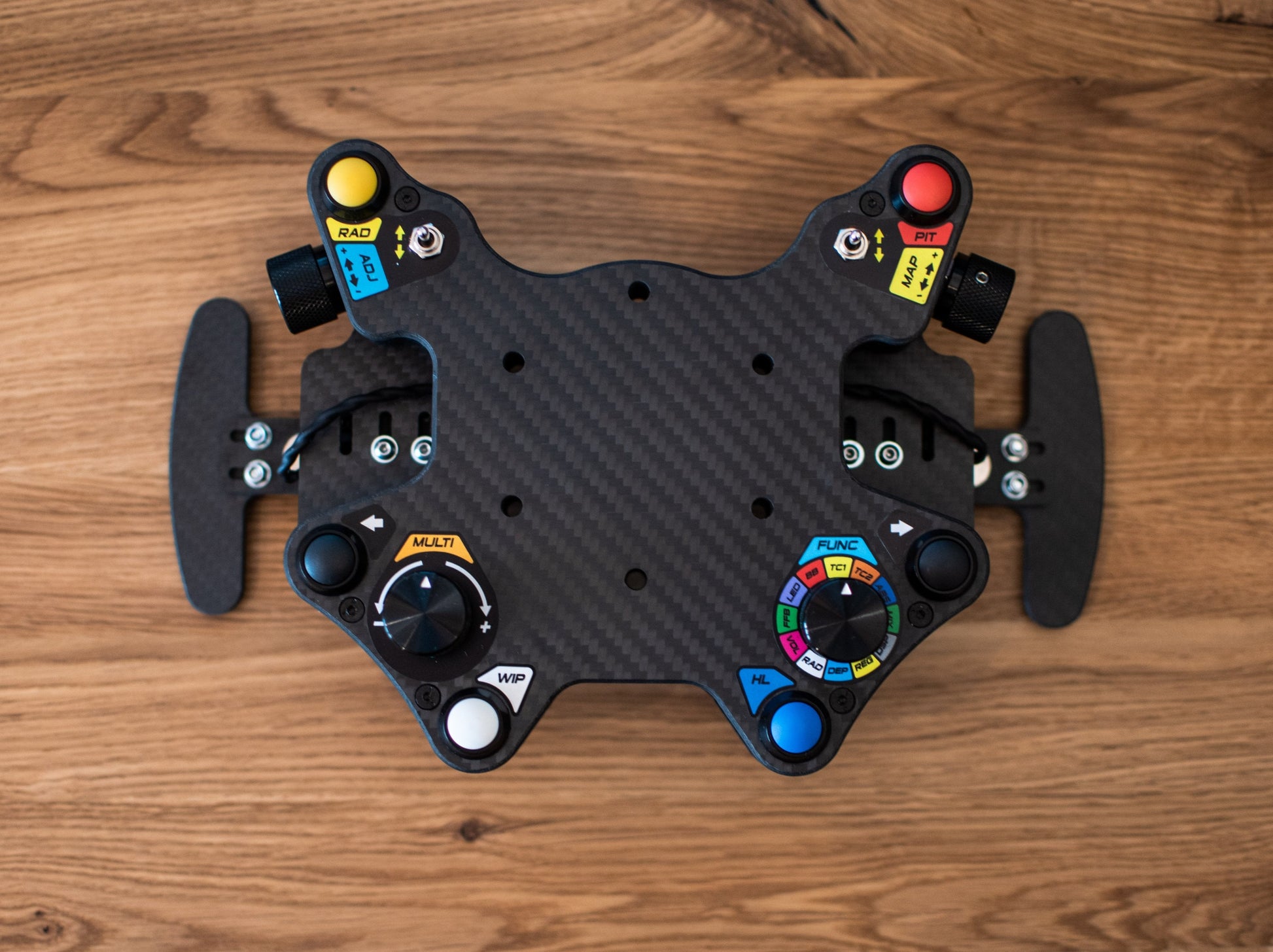

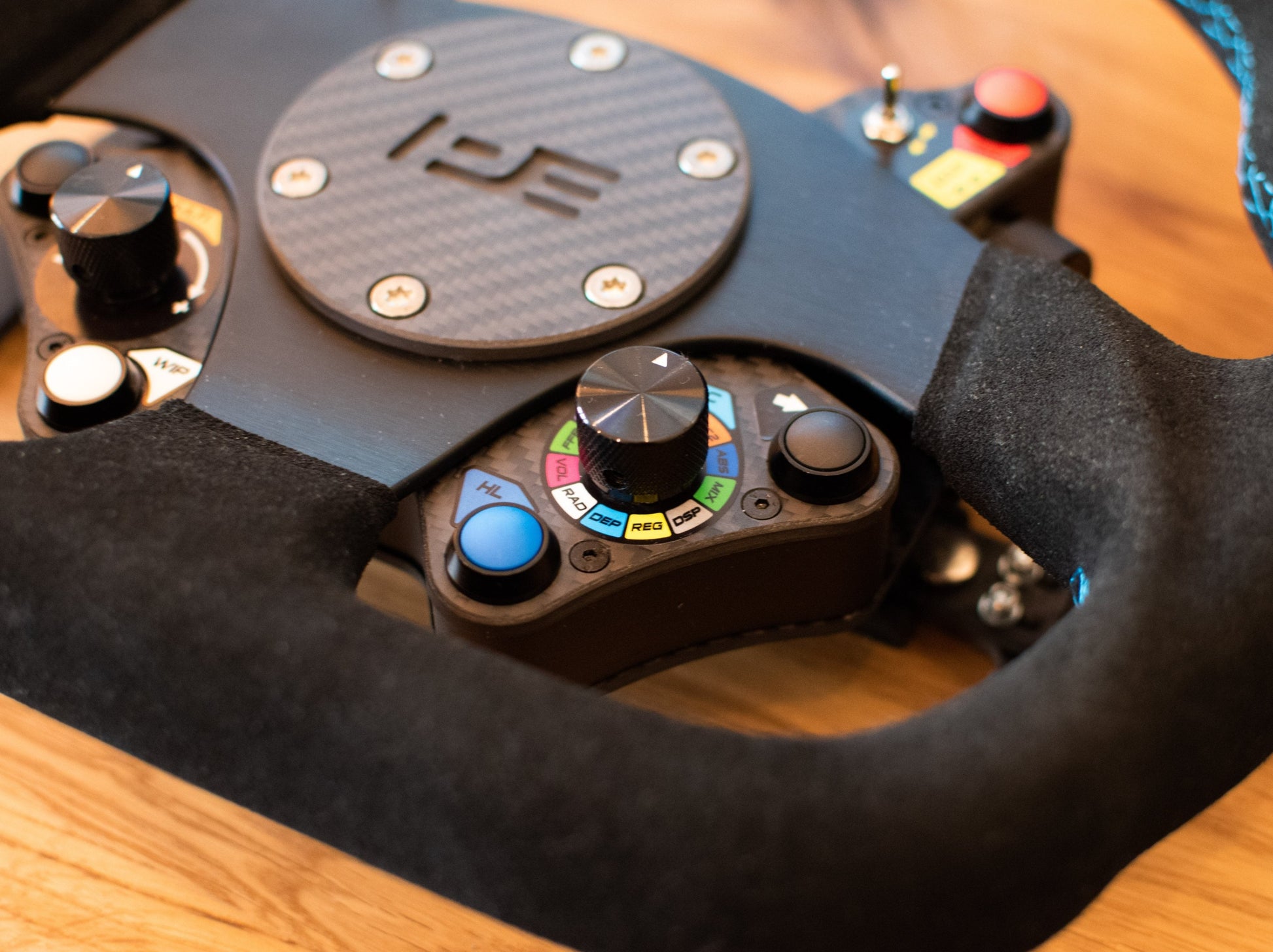

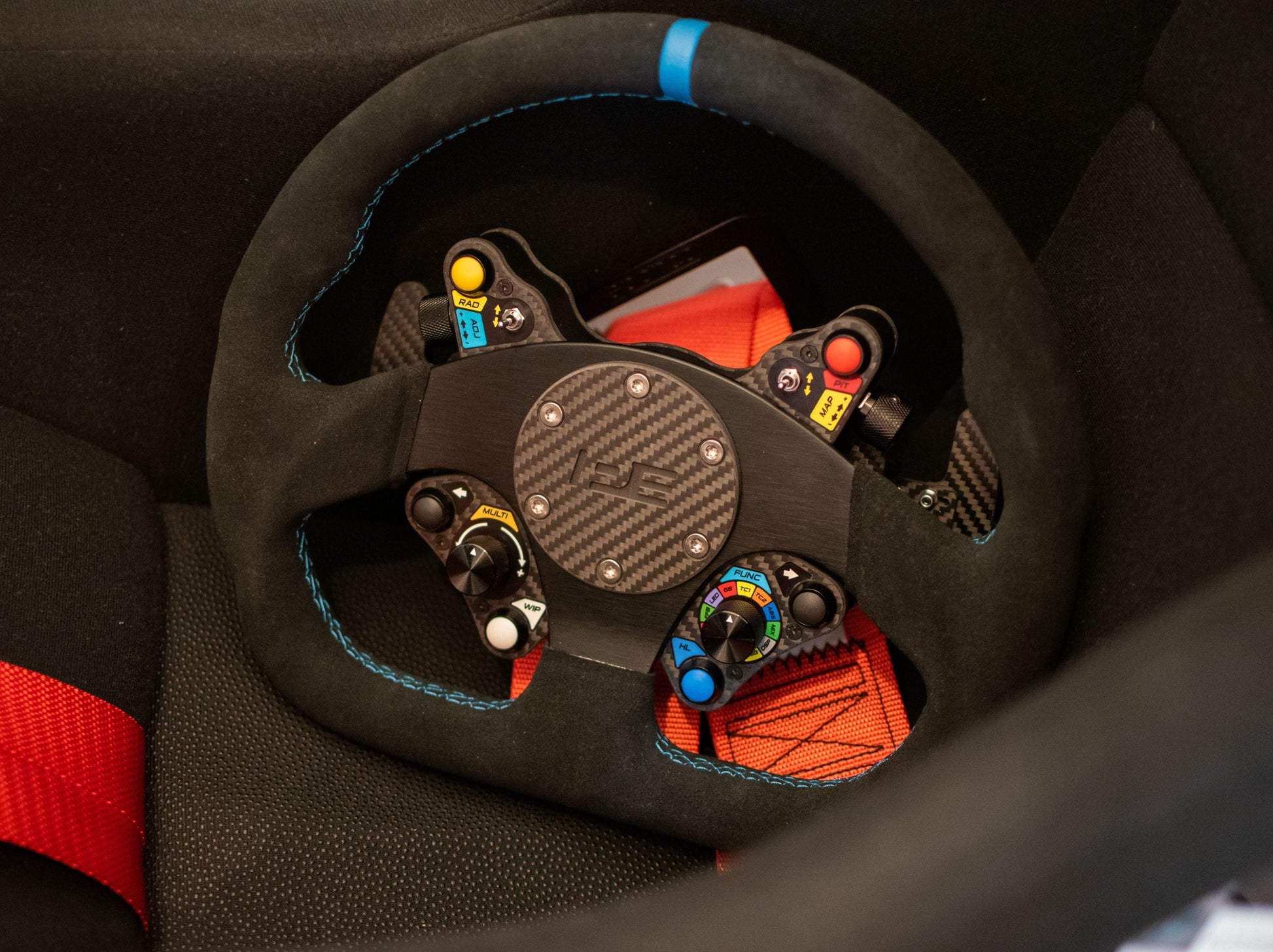

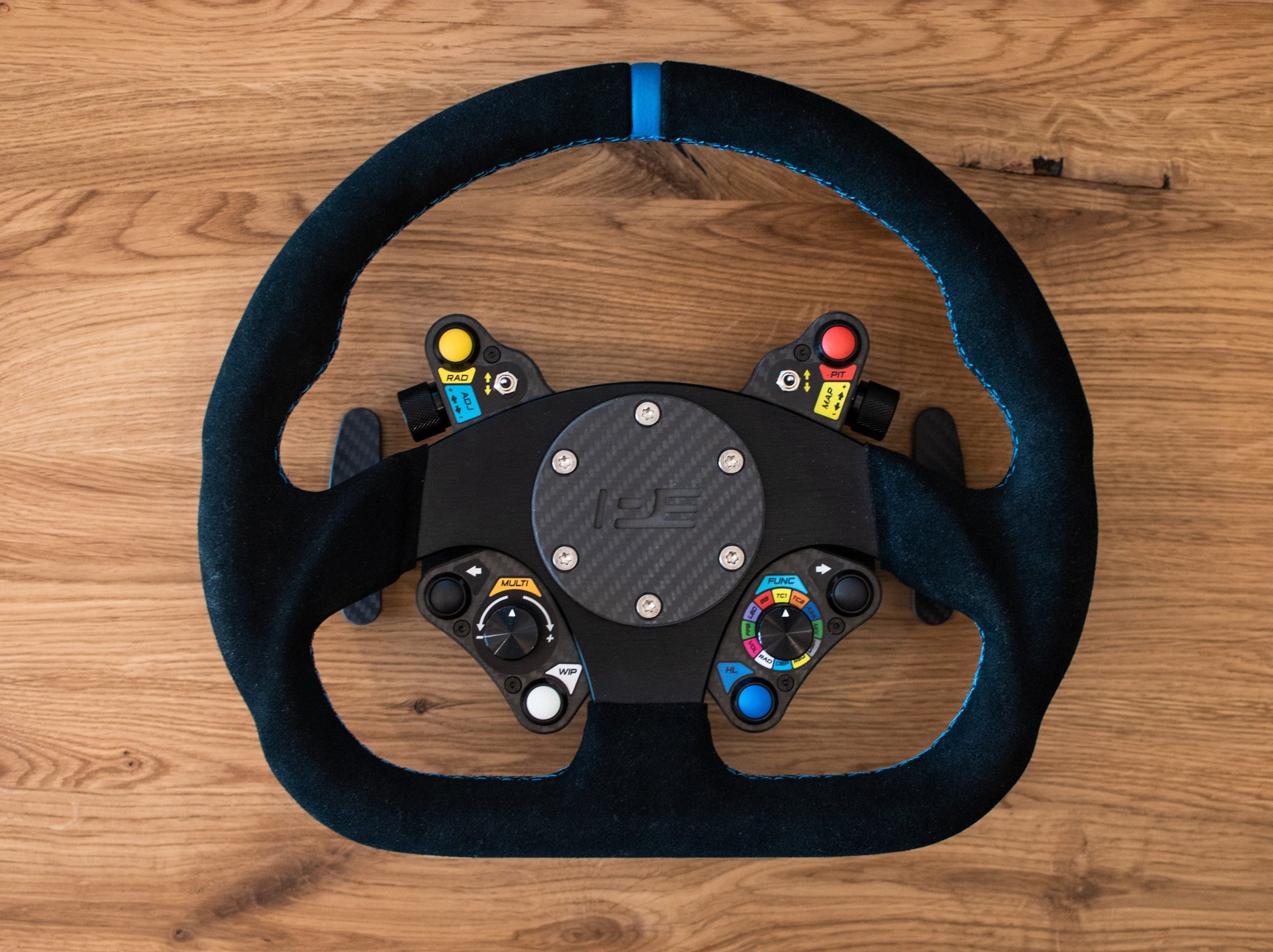

Add tons of inputs to you favorite steering wheel rim with the GT2 Button Plate!

After purchase you will be able to download all the files provided for this wheel.

Demo video: https://www.youtube.com/watch?v=JupGJq6jSIo

Wheel features:

  • USB HID game controller (total 40 inputs)

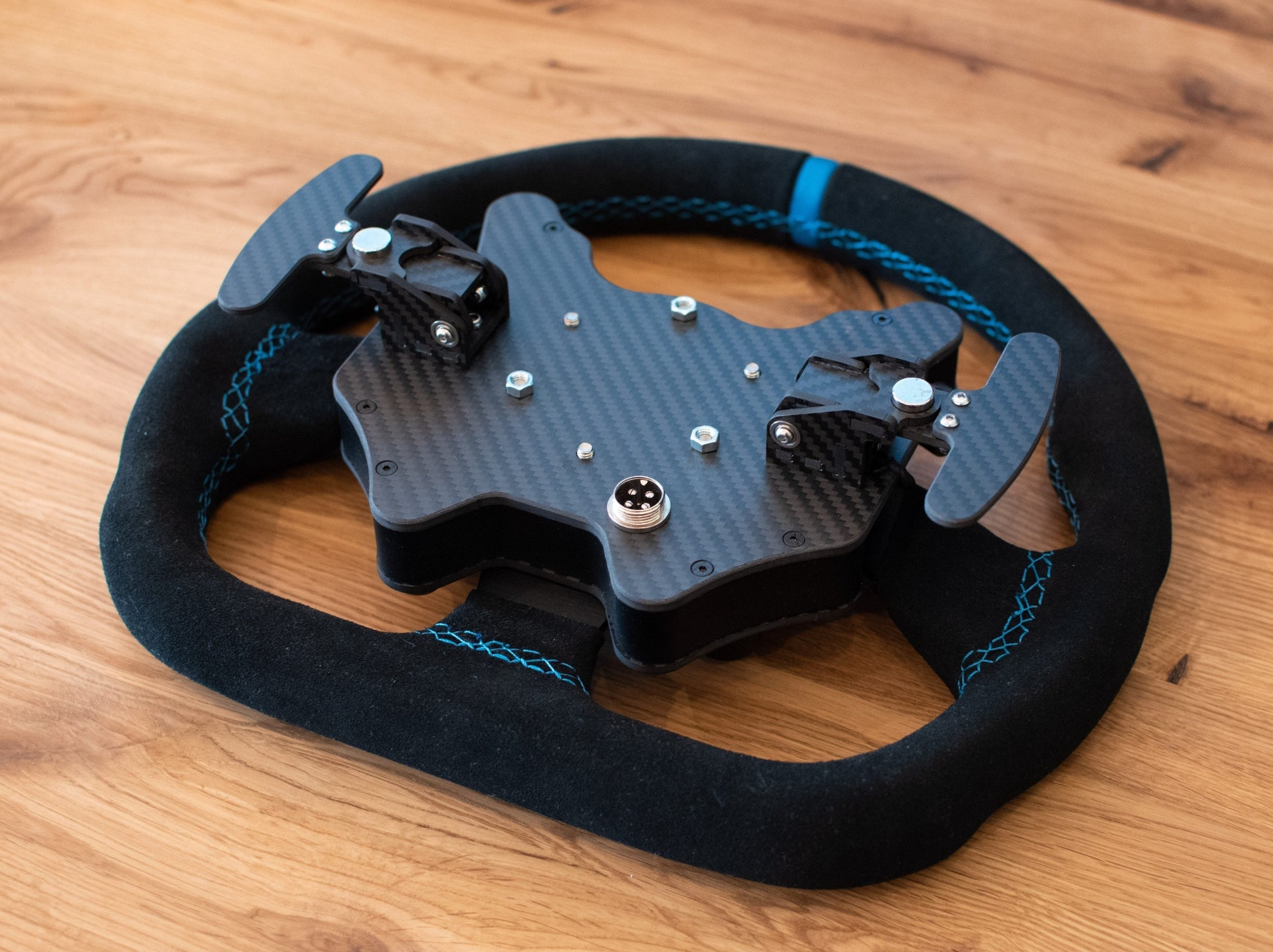

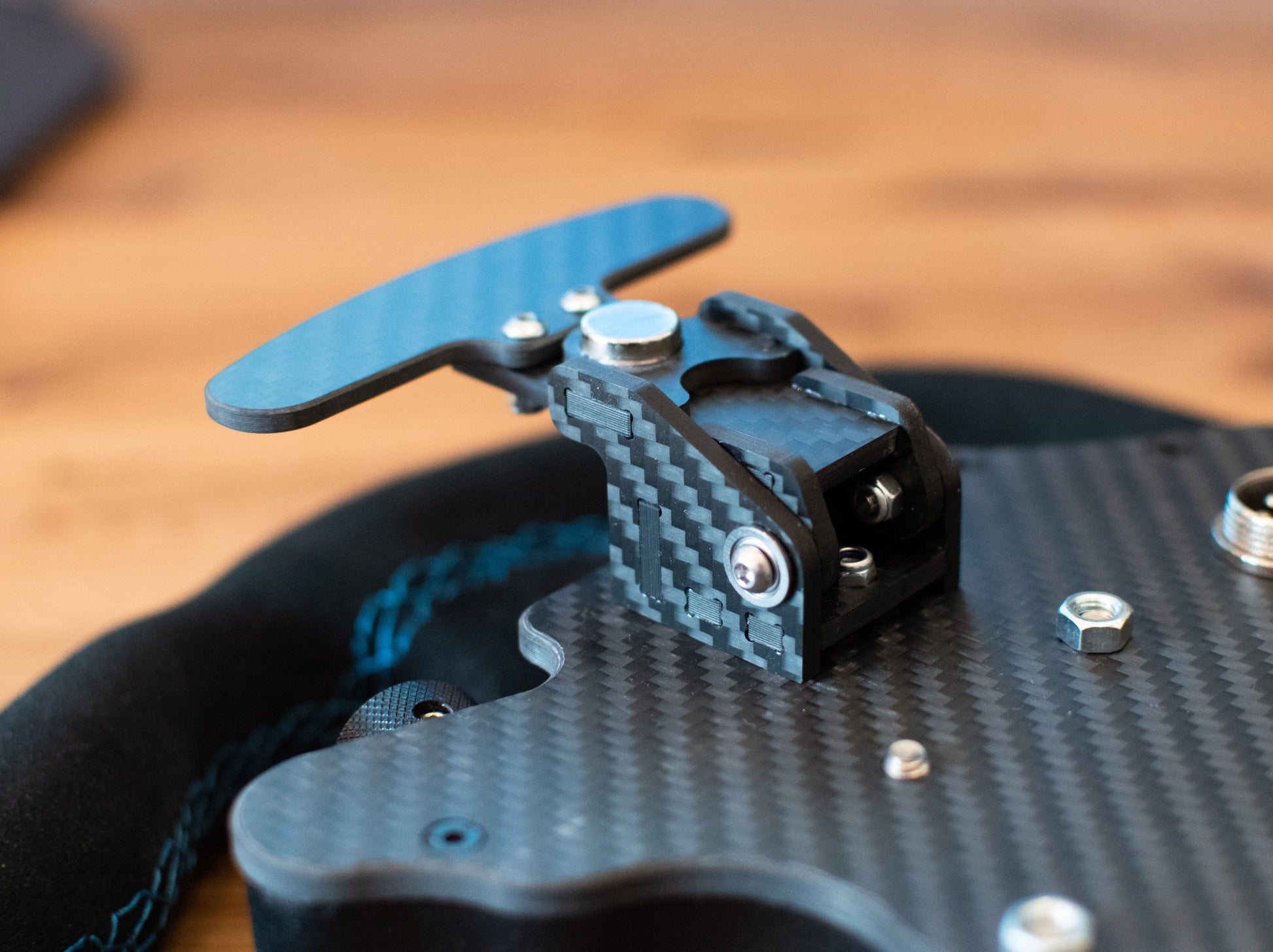

  • Fully carbon magnetic paddle shifters with ball-bearings
  • 6x Push buttons

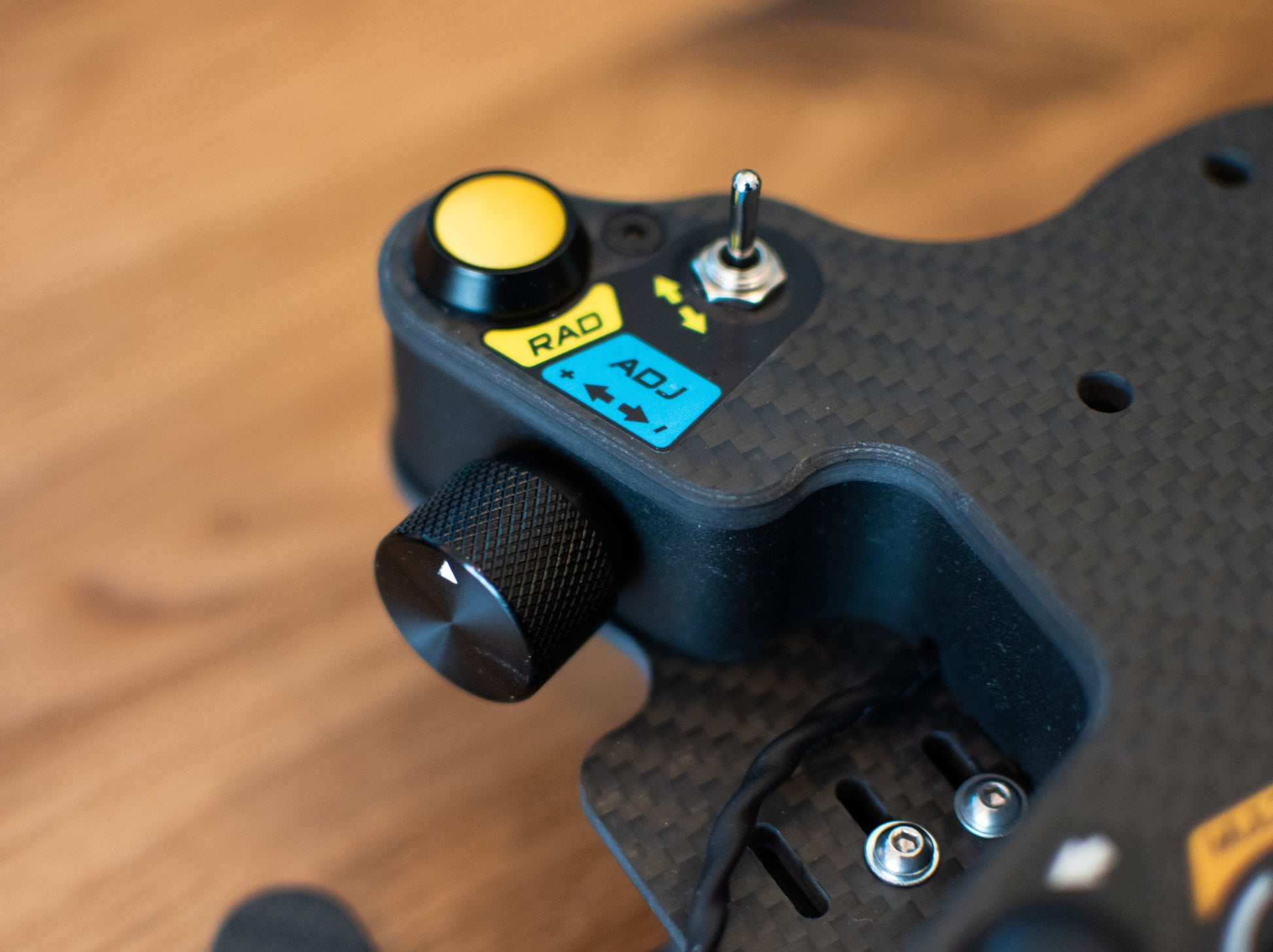

  • 2x side CTS rotary encoders

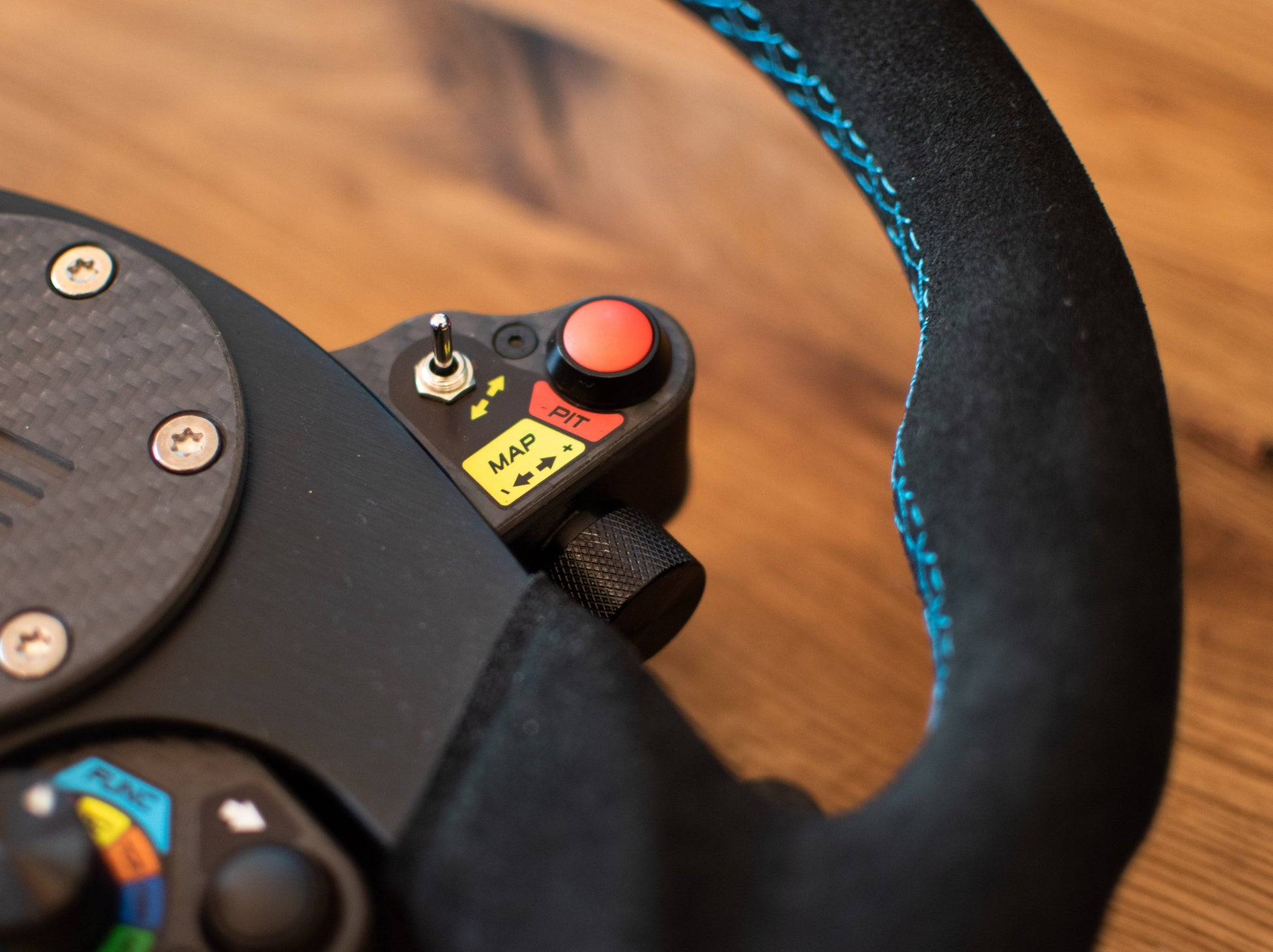

  • 2x 2-way toggle switches
  • Multi-function rotary switch pair: right front rotary acts as function selector switch (12 functions) while you can adjust the selected parameter with the left front rotary (so these 2 rotaries are working as 12x2 = 24 inputs)
  • 70mm PCD mount
  • Based on STM32F103C8T6 board (Minimum System/Bluepill)

Design content:

  • Full detailed assembly guide (26 pages, ~45 pictures)
  • Full BOM with links (bill of materials: part list, e.g.: screws, connectors, magnets, ...)
  • Files for 3D printing (.stl, printable on 200x200mm bed)
  • Files for carbon fiber/aluminum parts manufacturing (.step)
  • Daughater PCB fabraication files for easier wiring (costs about 5 USD)
  • Firmware binary and source file
  • Sticker designs (printable, vector format)

Compatible rims:

  • Cube Controls
    • GT-Cube Pro Rim
    • GT-Cube Sport Rim
  • Fanatec
    • Podium Wheel Rim R300
    • Clubsport Wheel Rim GT
    • Podium Wheel Rim Porsche 911 GT3 Cup
  • MOMO
    • MOD 30
  • OMP
    • Superquadro

PERSONAL USE LICENSE ONLY

The files are for personal use only, non commercial, not for resale!
You cannot sell the digital model, a derivative or adaptation of the model, nor can you sell prints/makes of the model.

This is not physical product. Digital downloads will be sent via email after completing payment.

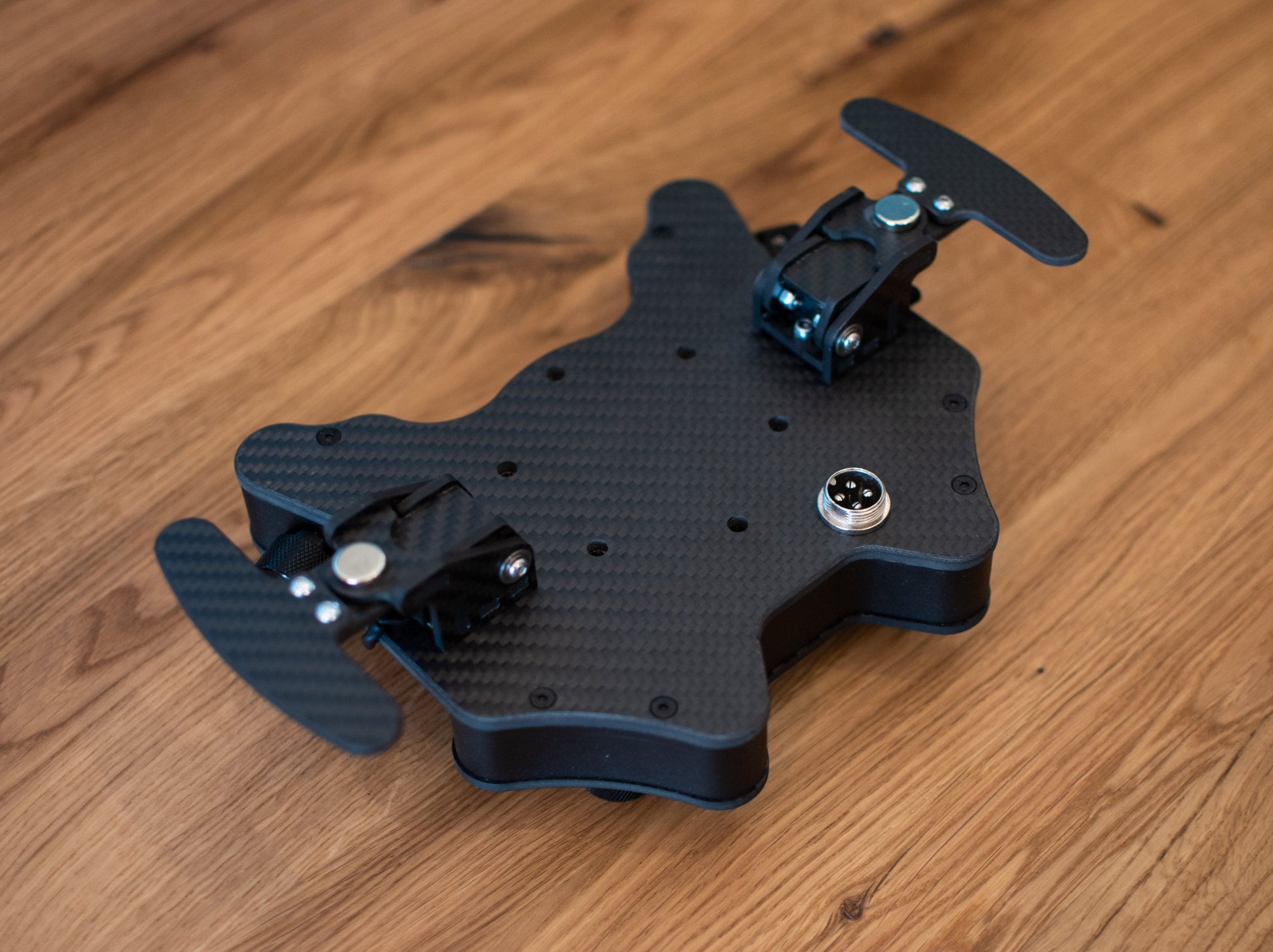

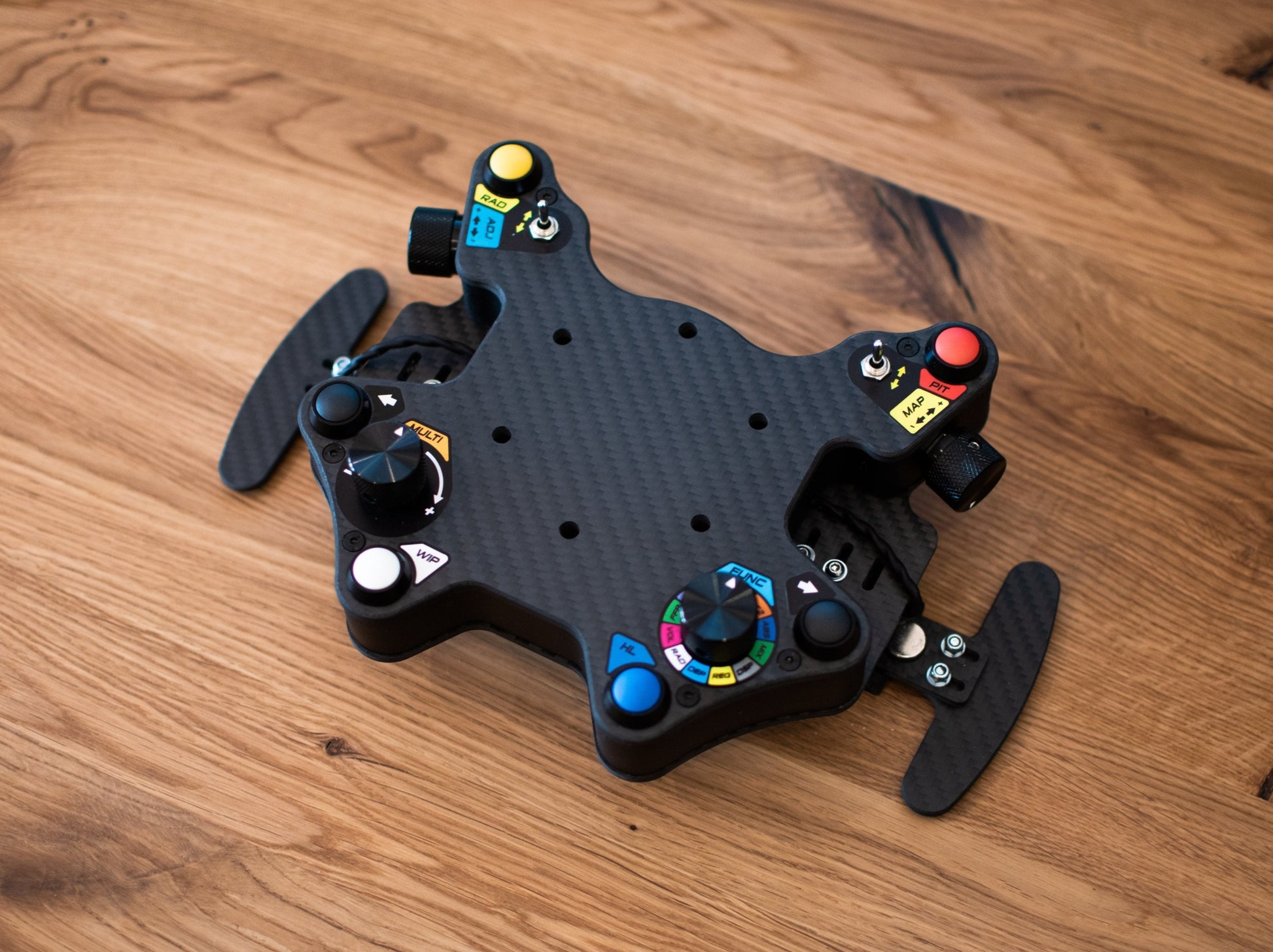

Photos are example only of one build.
