GTE BOX DIY files

Regular price
€22,00
Sale price
€22,00
Regular price
Sold out
Unit price
per

... because you can never have enough buttons!

After purchase you will be able to download all the files provided for this design.

Pre-cut carbon plates available in the TFS webshop.
The files and assembly manual should still be purchased here. All the files for carbon parts are still included in the package also.

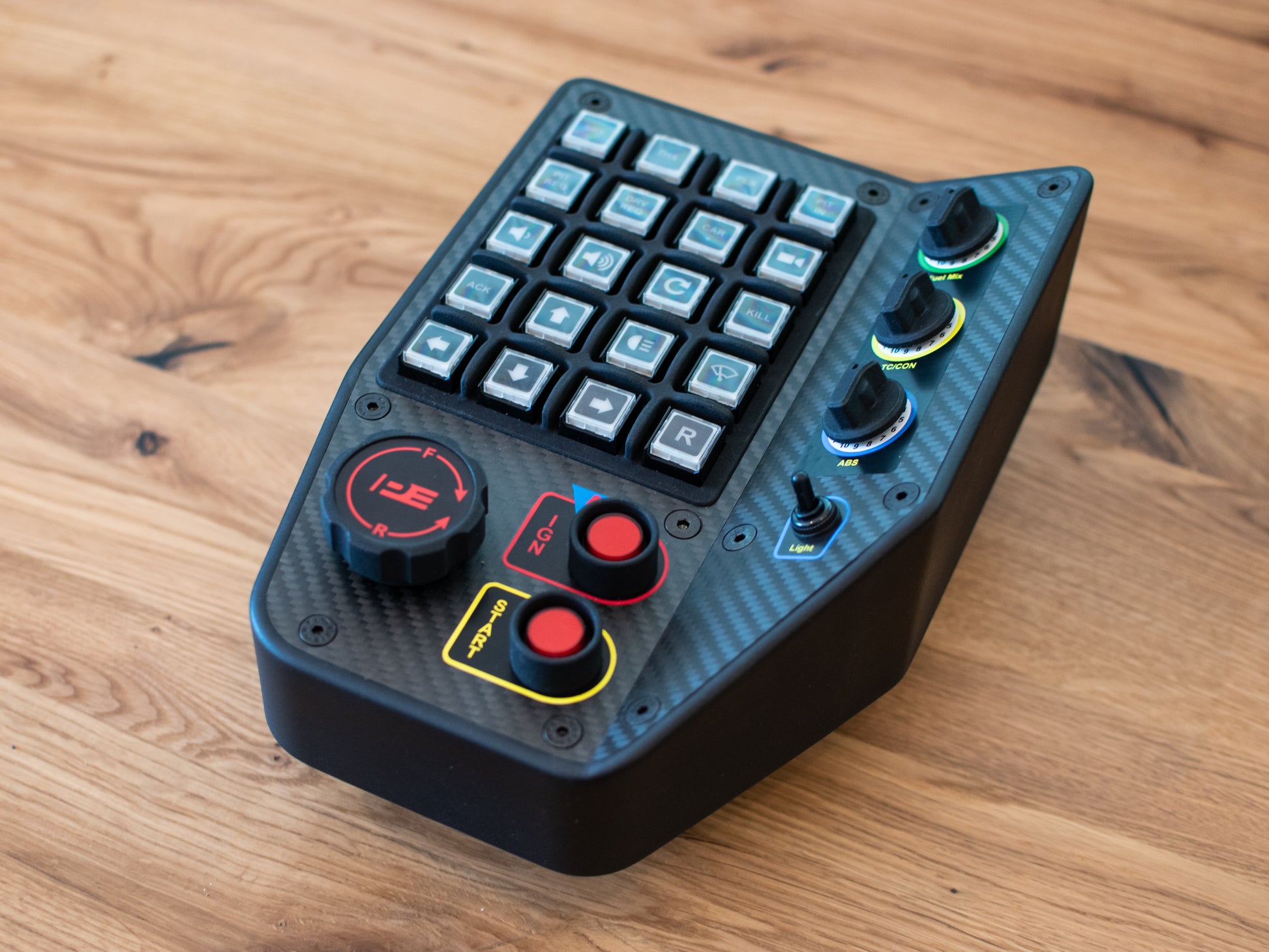

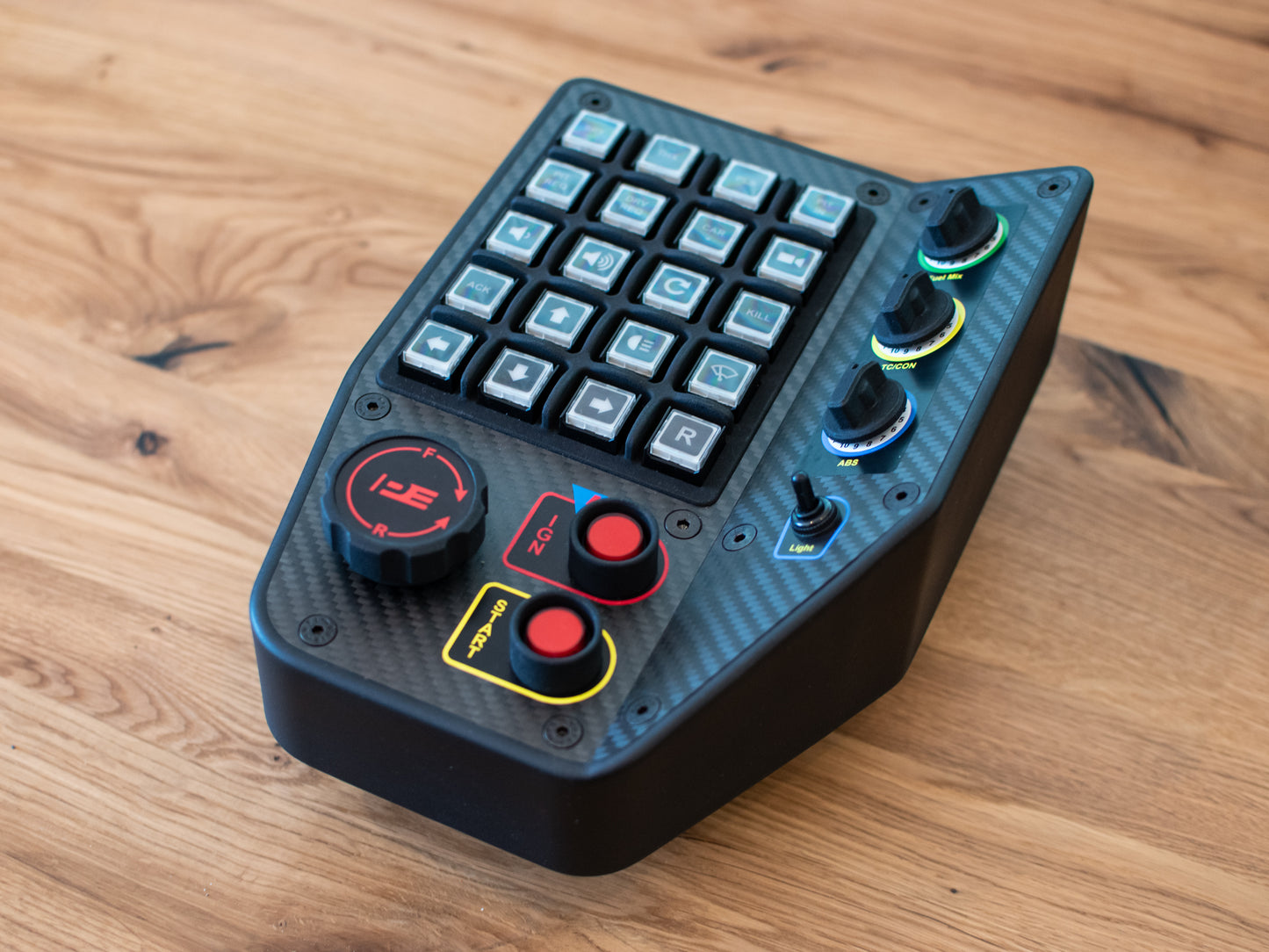

Wheel features:

  • 4mm real carbon fiber front- and backplate
  • Angled rotary plate

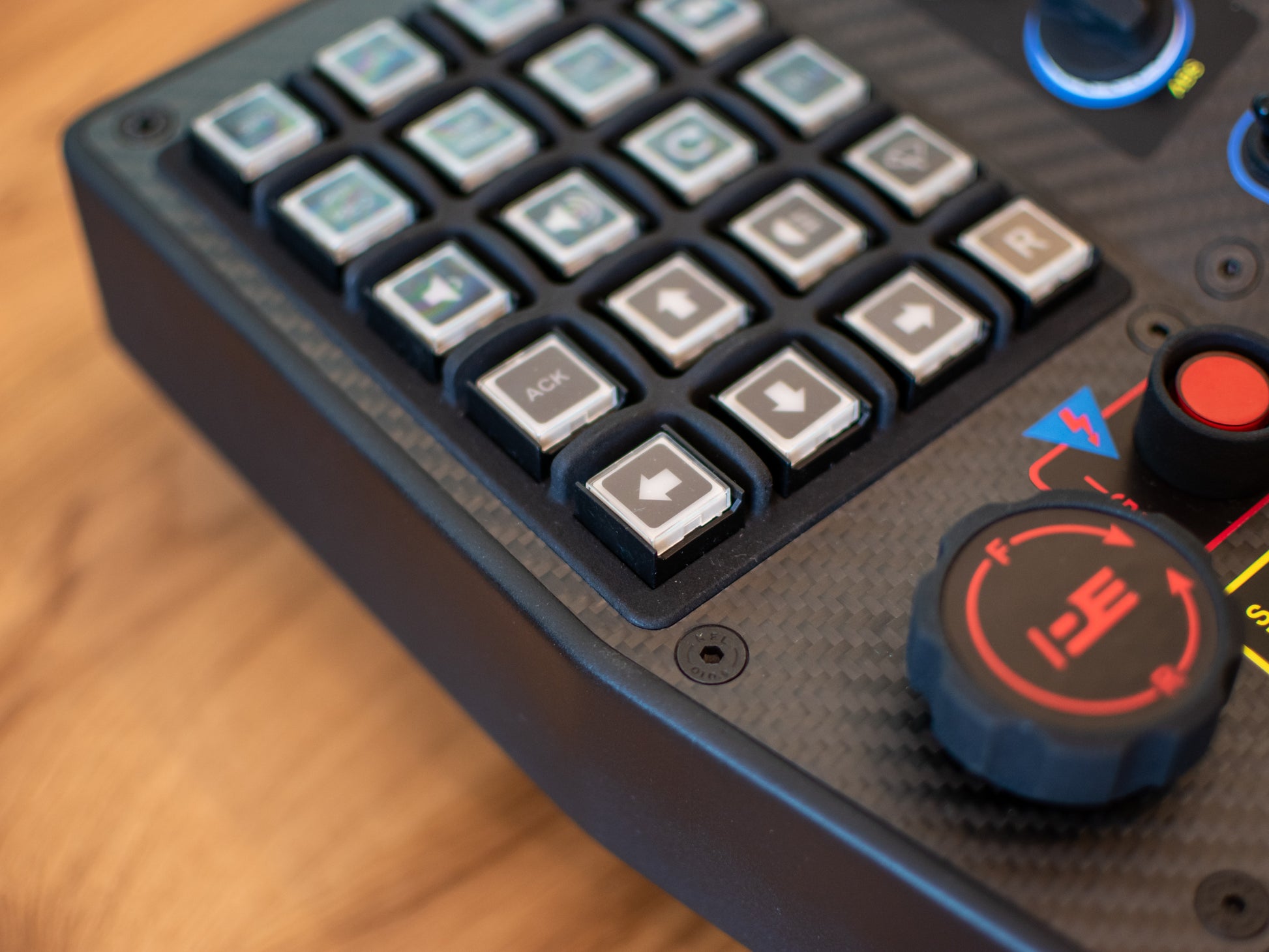

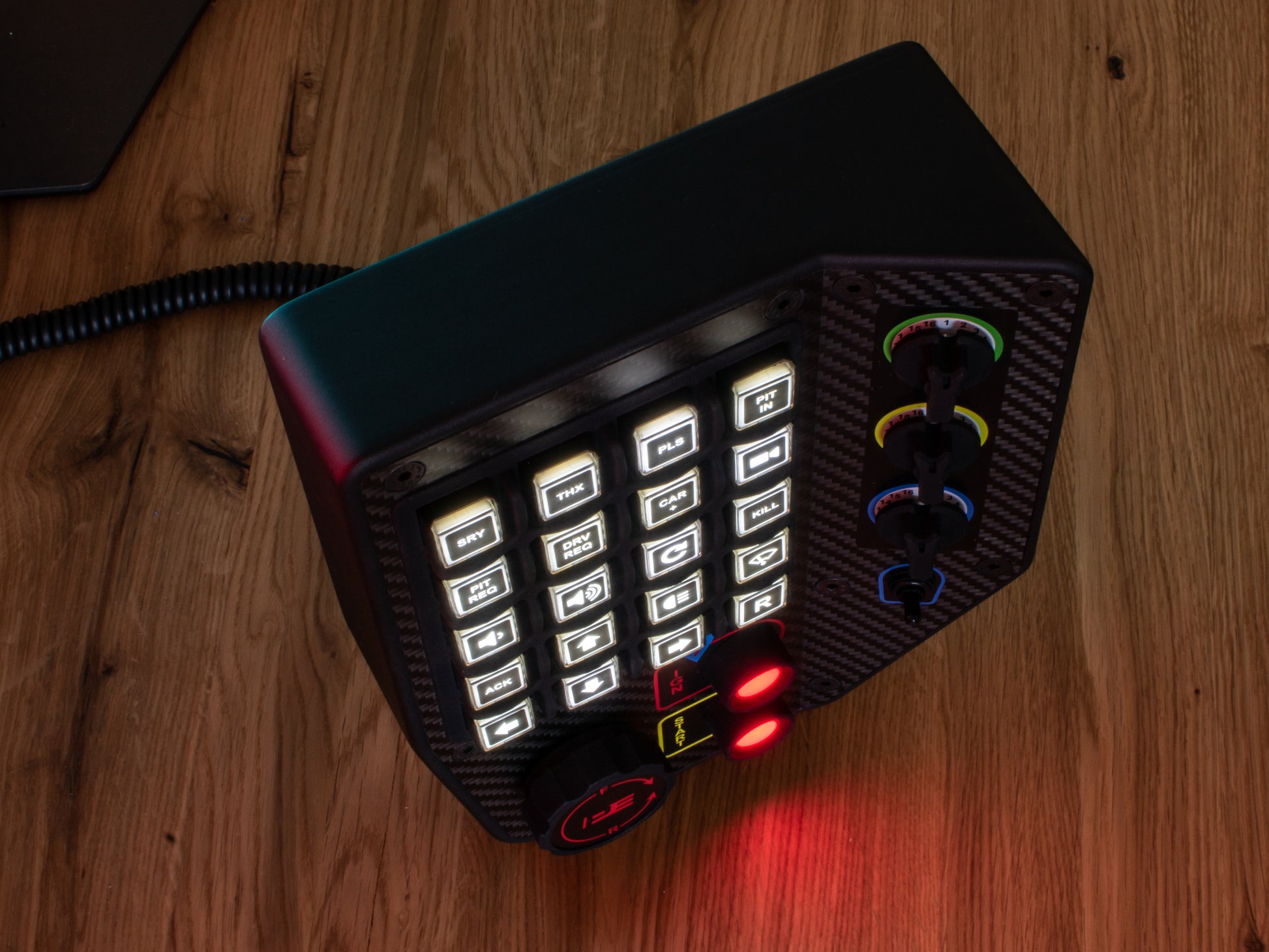

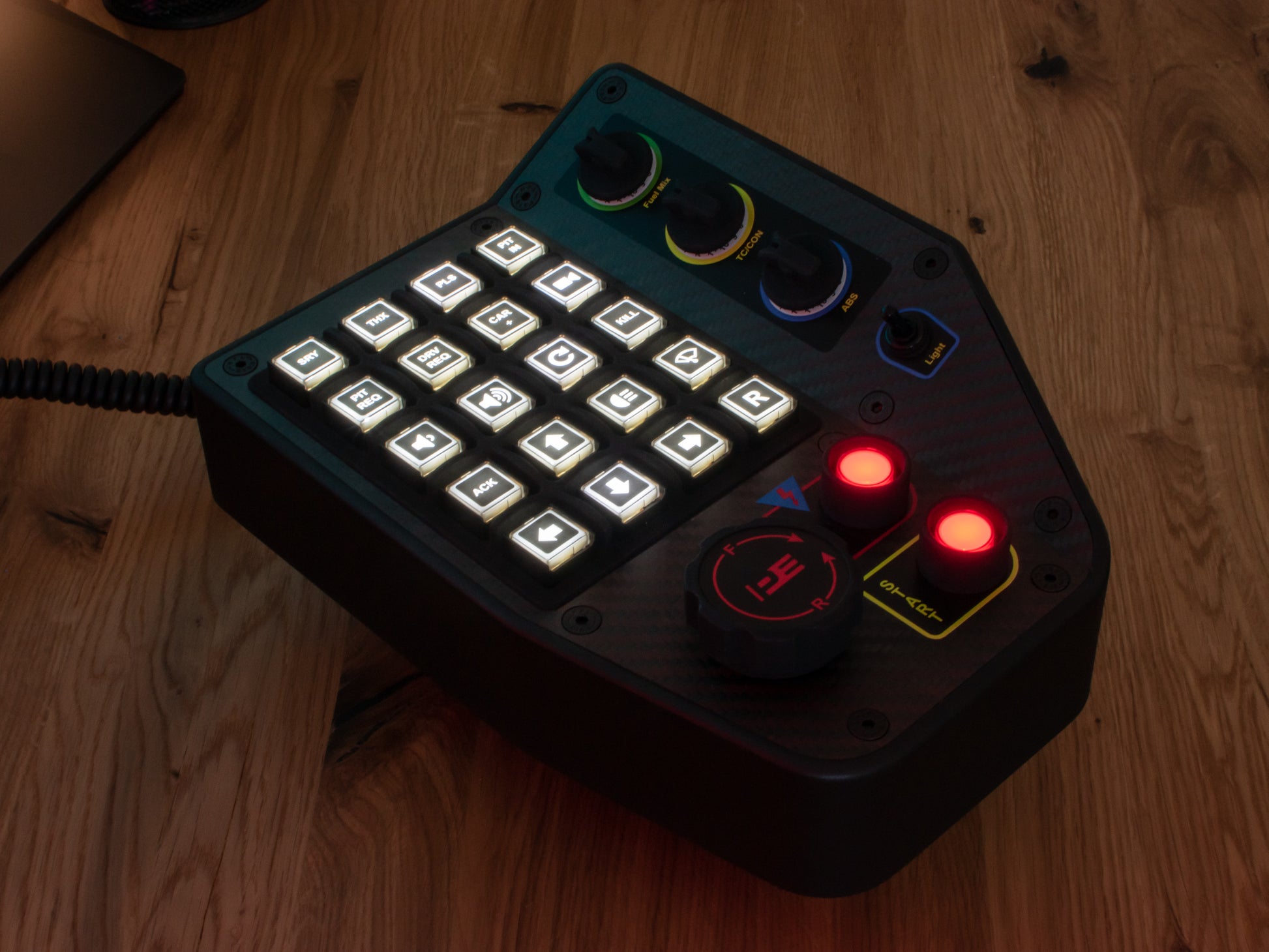

  • 22x Illuminated push buttons

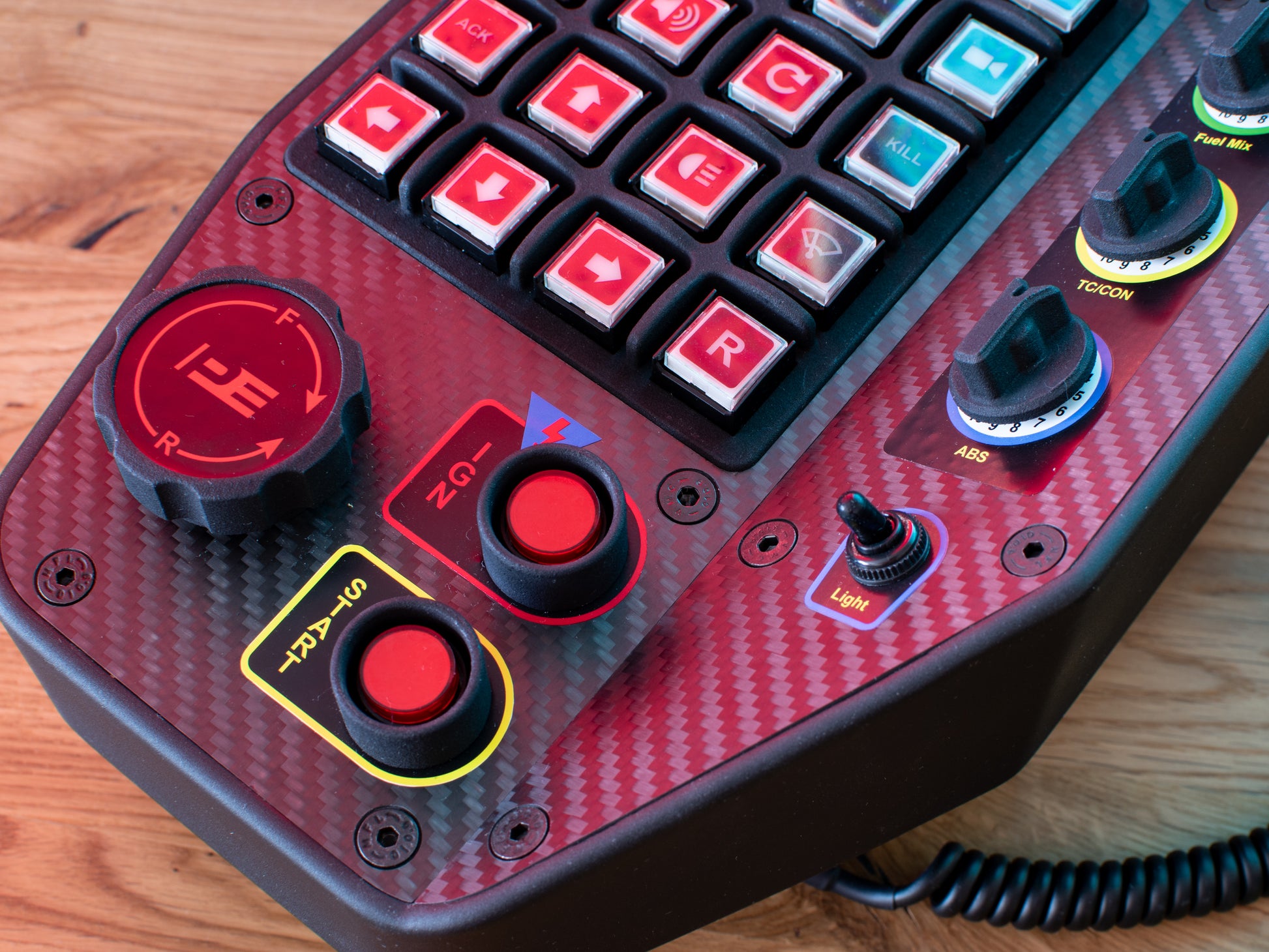

  • 3x CTS288 rotary encoders

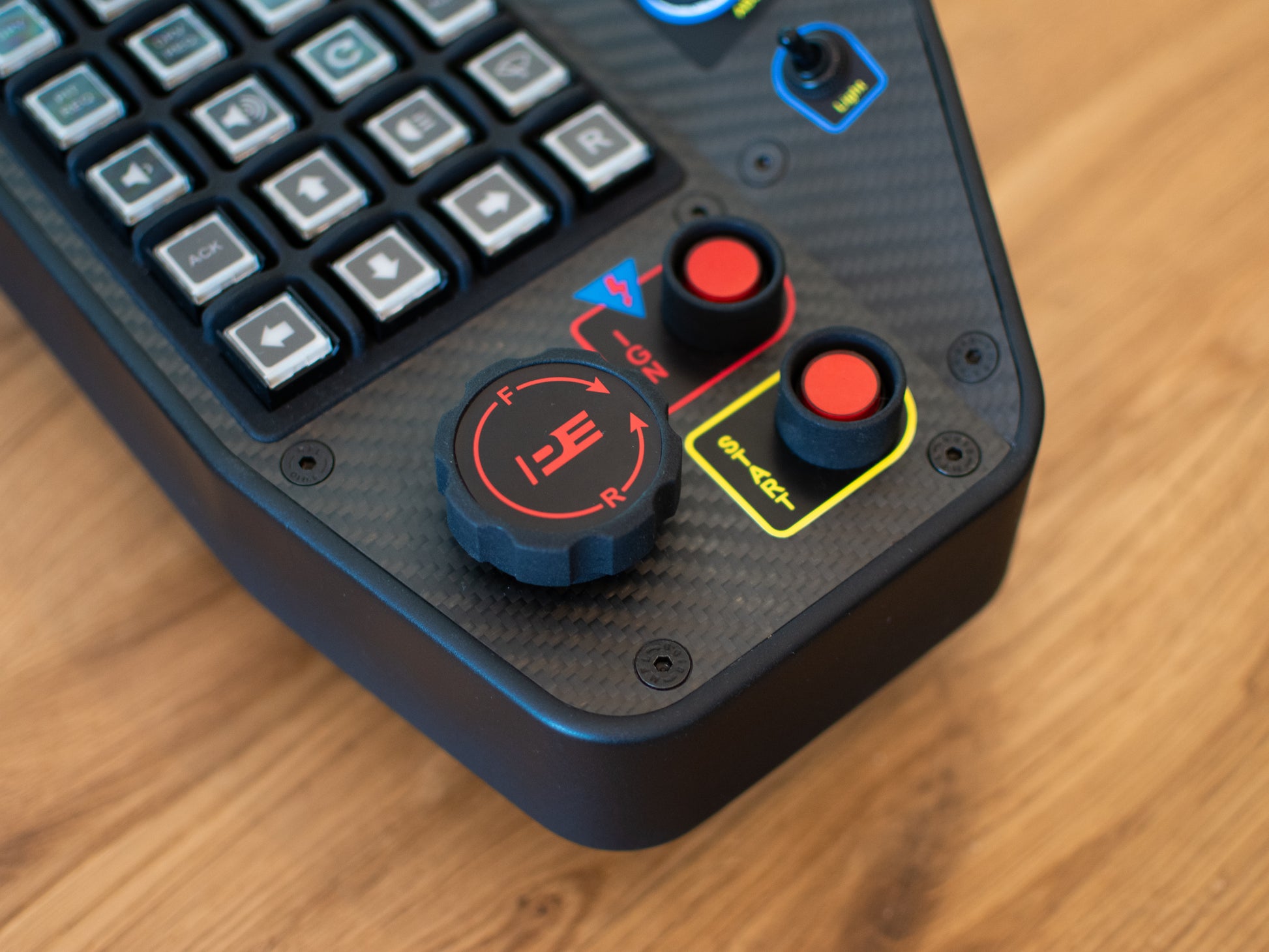

  • 1x 12-position switch (with strong detents) used as encoder for brake bias adjustment
  • 1x Button backlight switch

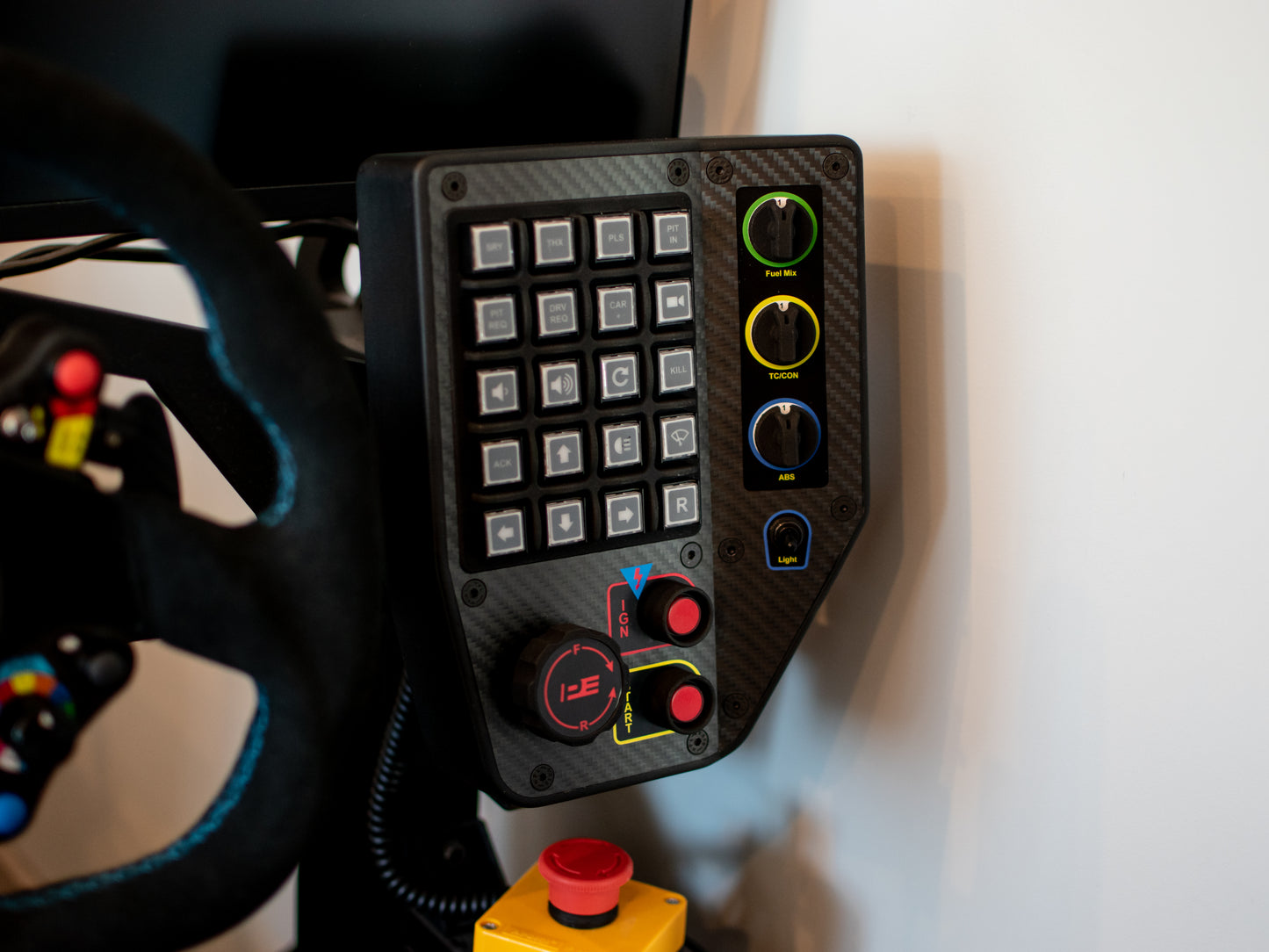

  • Multiple mounting options
    • 100x100 VESA M5 mount
    • M5 slot nut adjustable alu profile mount
  • Based on generic STM32F103C8T6 devboard from ebay/aliexpress or other stores

Design content:

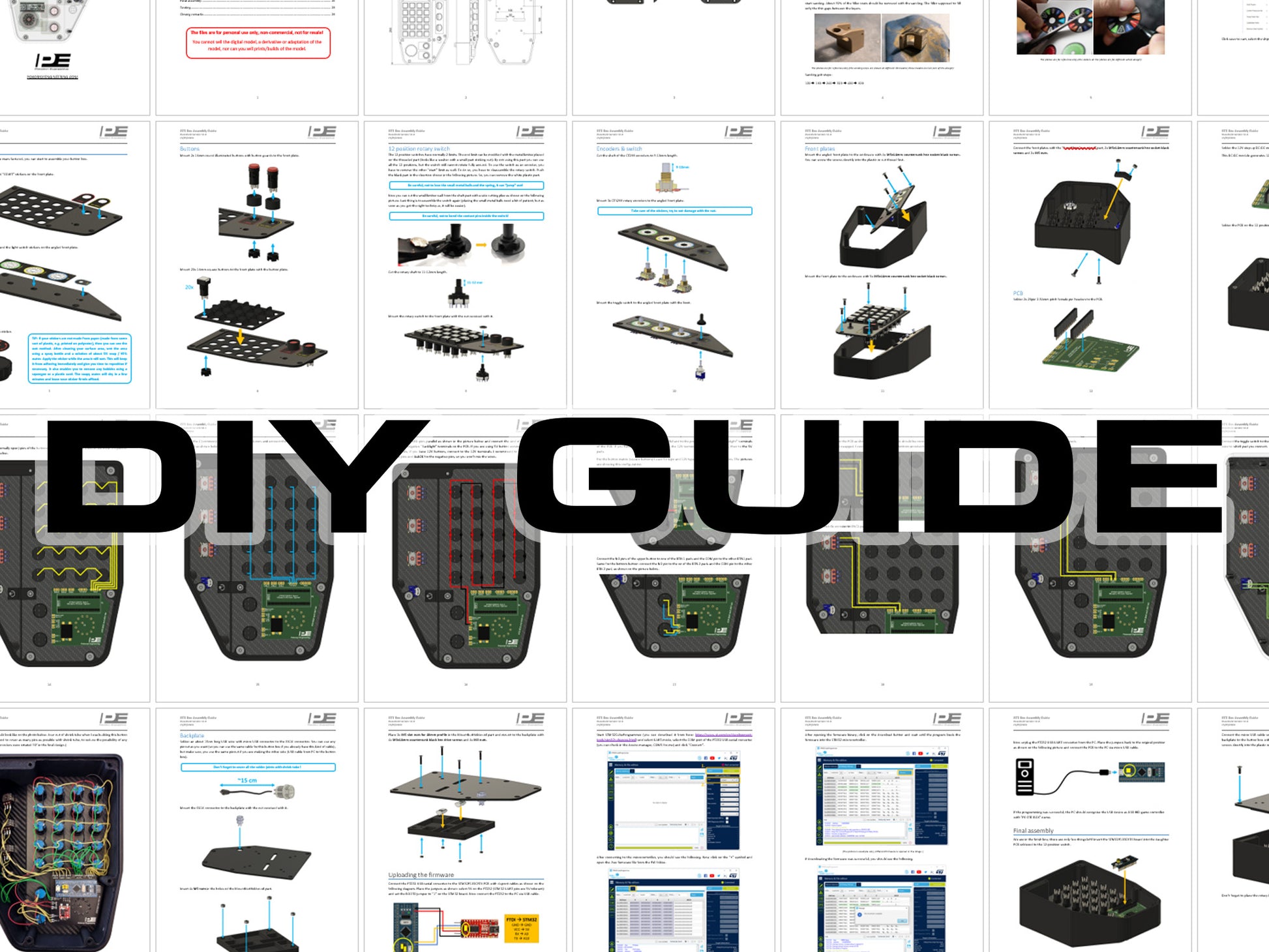

  • Full detailed build guide (28 pages)
  • Full BOM (bill of materials: component list, screws, connectors, buttons, magnets, ...)
  • Files for 3D printing (.stl, printable on 200x200mm bed)
  • Files for carbon fiber/aluminum parts manufacturing (.dxf and .step)
  • Fabrication files for daughater PCB (2$ at JLCPCB)
  • Firmware for the PCB (Total 27 inputs + 2 analog, RGB LED control, backlight control, dual-clutch system with calibration mode, ...)
  • Stickers in pdf and vector formats (printable)

PERSONAL USE LICENSE ONLY

The files are for personal use only, non commercial, not for resale!
You cannot sell the digital model, a derivative or adaptation of the model, nor can you sell prints/makes of the model.

This is not physical product. Digital downloads will be sent via email after completing payment.
Photos are example only of one build.
