Pokornyi Engineering

GT2 PLATE DIY files

GT2 PLATE DIY files

Regular price €24,00 EUR
Regular price €24,00 EUR Sale price €24,00 EUR
Sale Out of stock

excl. VAT, Taxes will be added for EU customers at checkout.

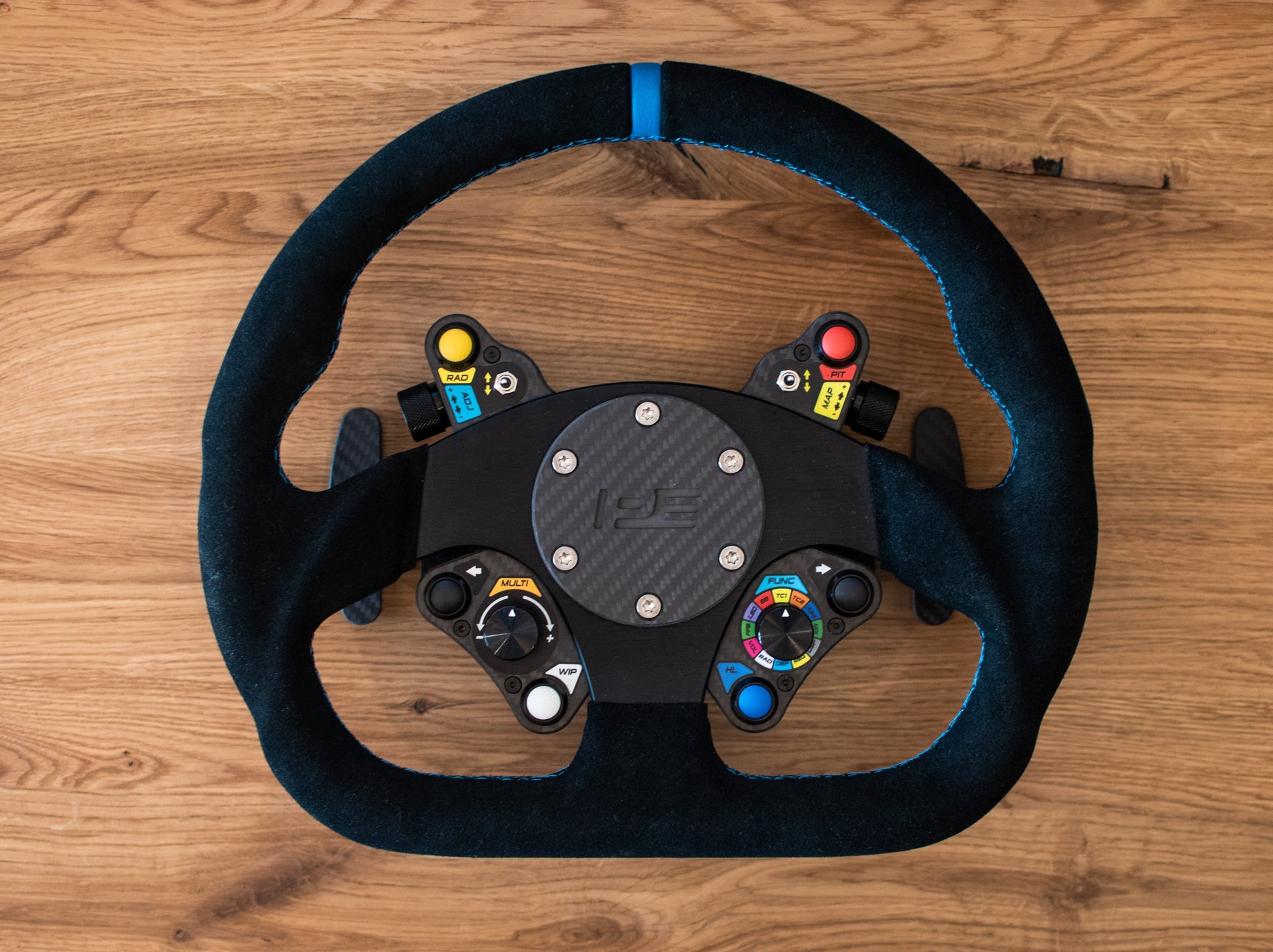

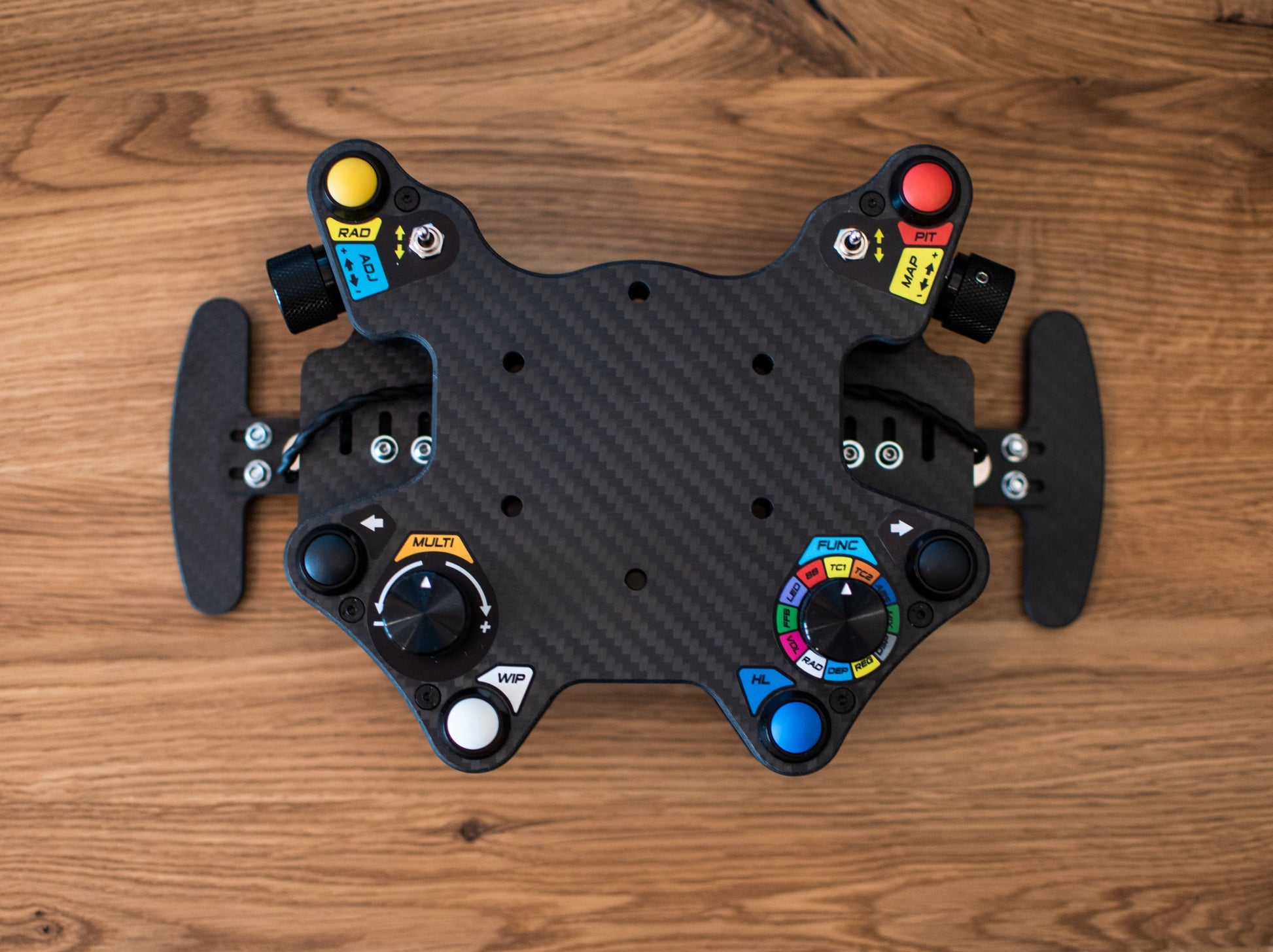

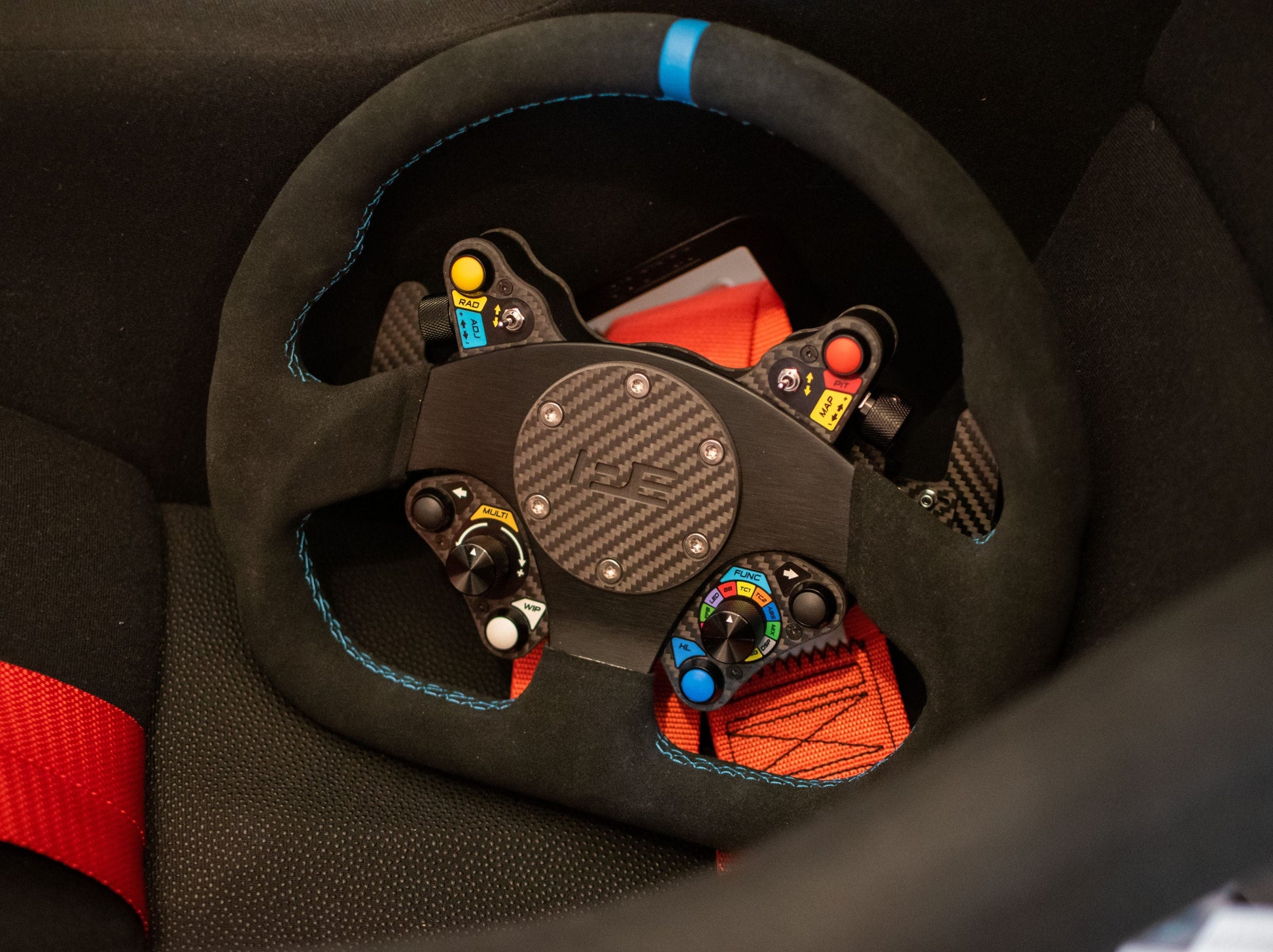

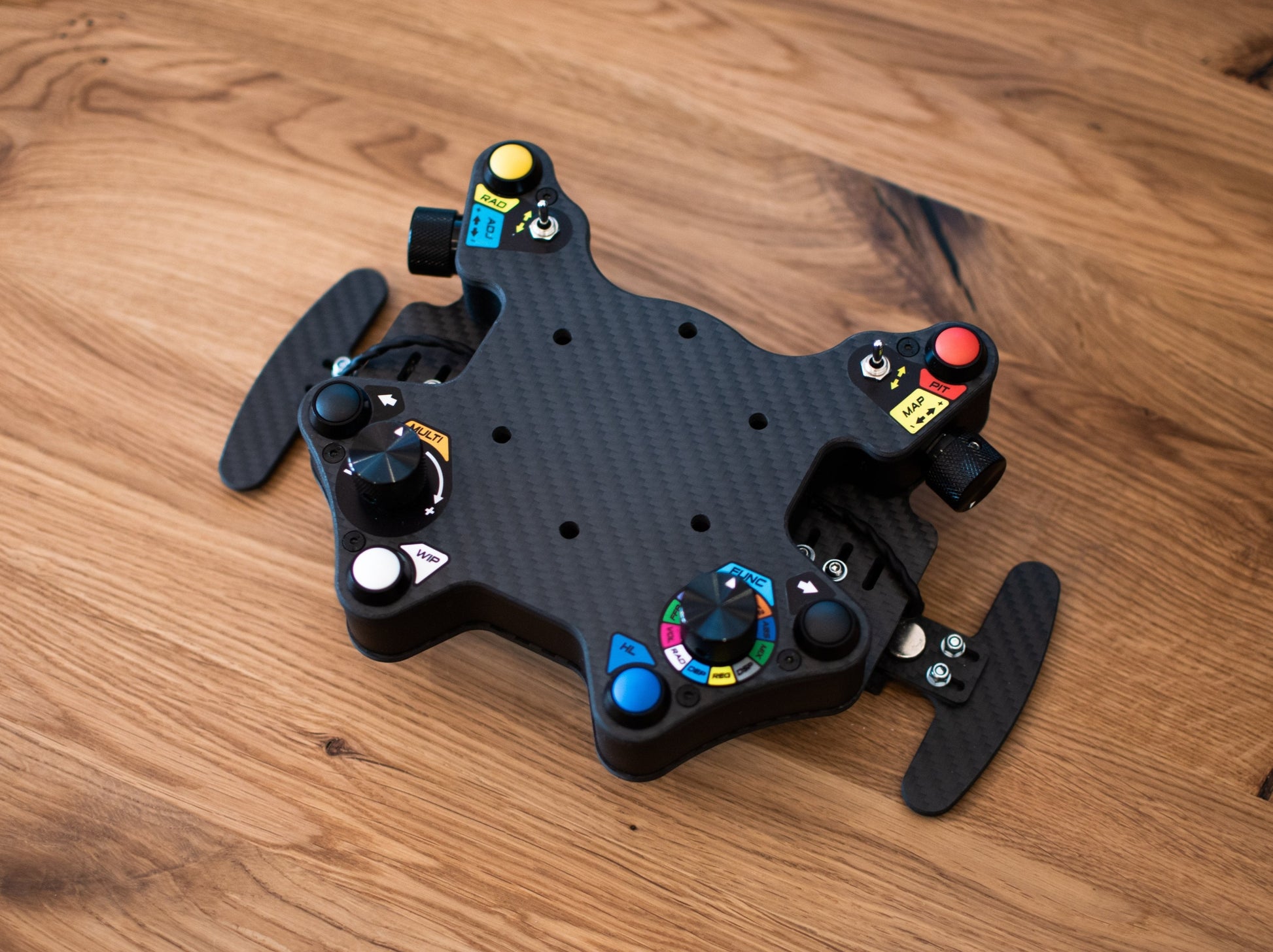

Add tons of inputs to you favorite steering wheel rim with the GT2 Button Plate!

After purchase you will be able to download all the files provided for this wheel.

Demo video: https://www.youtube.com/watch?v=JupGJq6jSIo

Features

USB HID game controller (total 40 inputs)

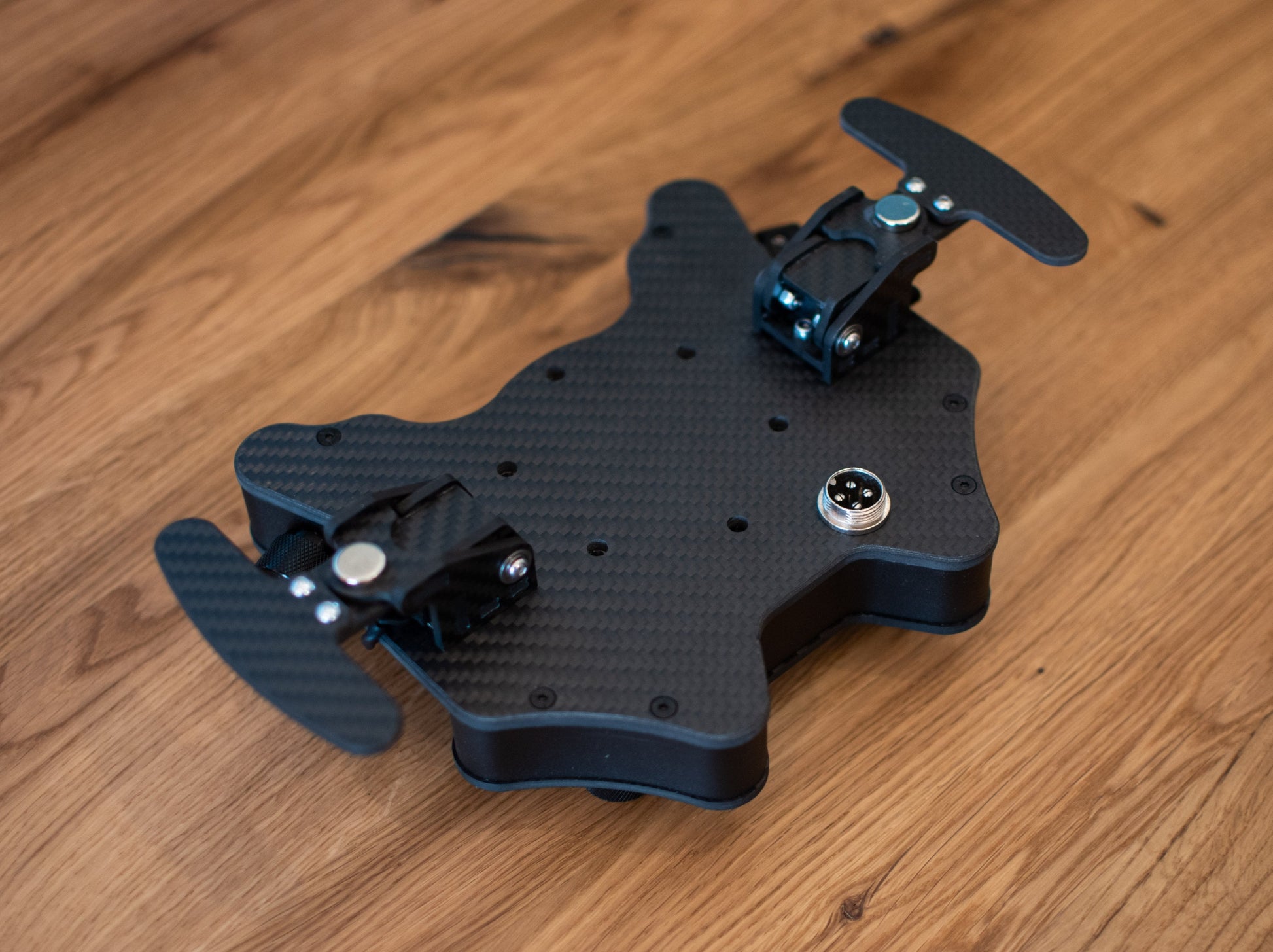

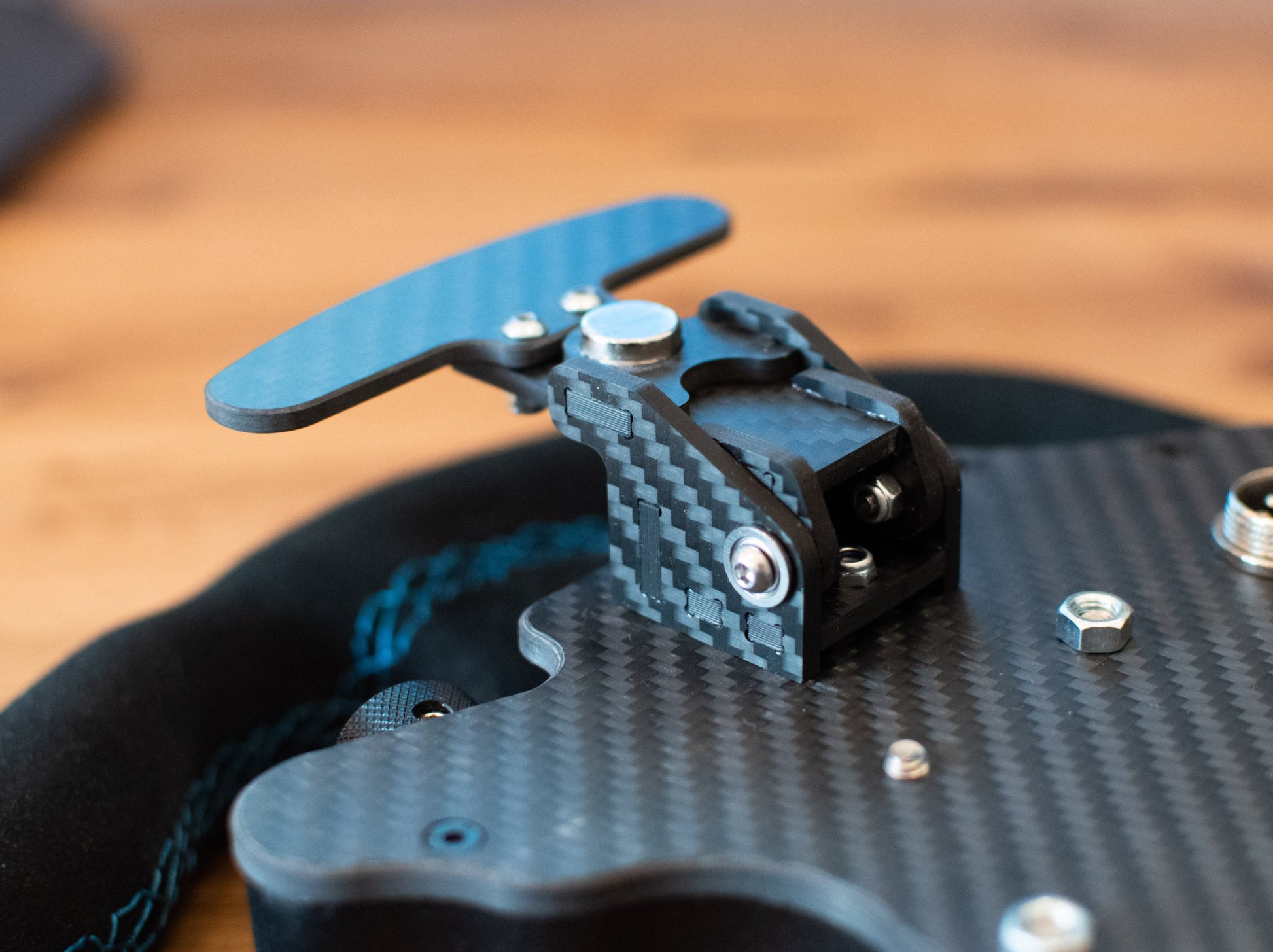

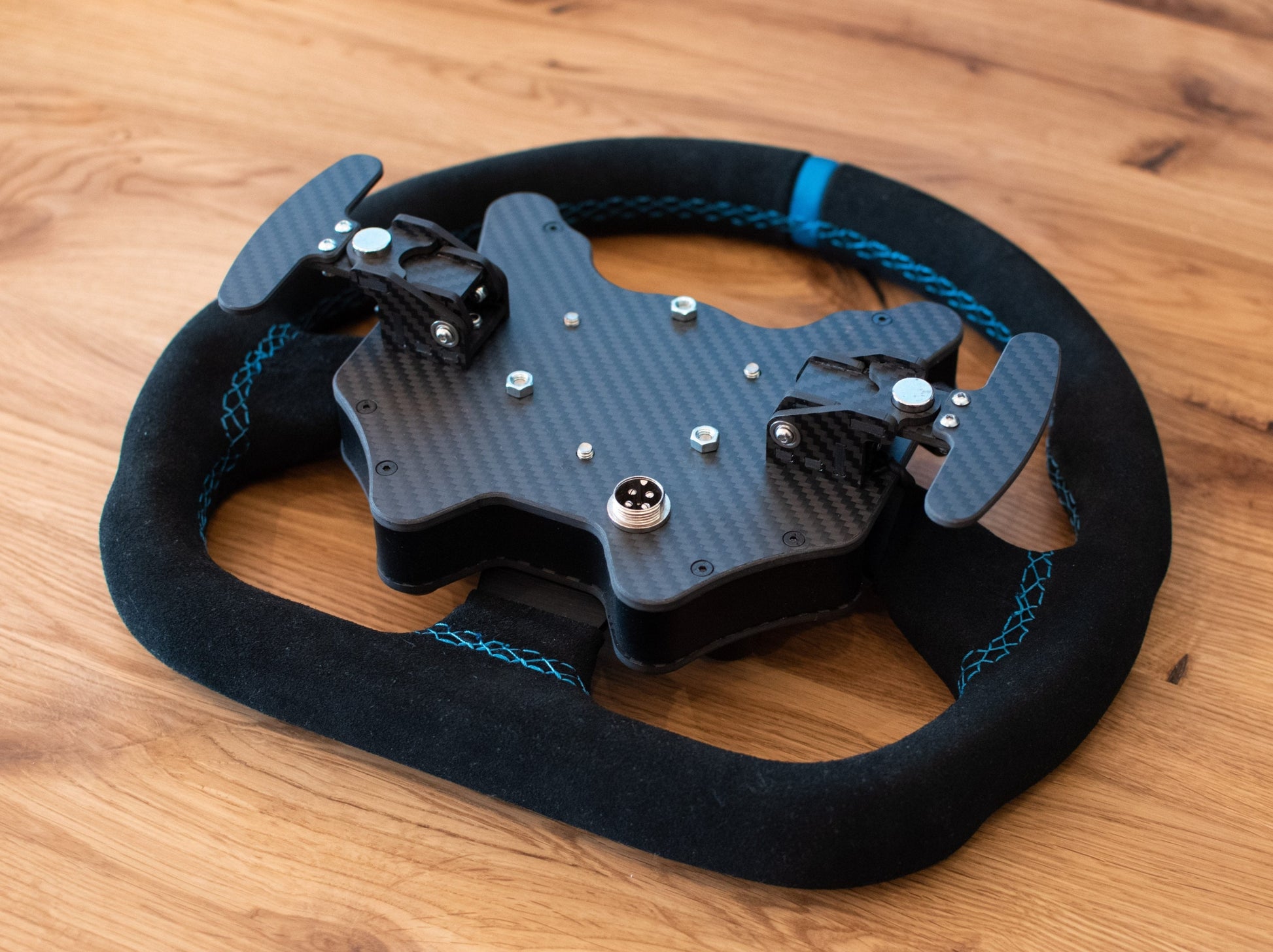

Fully carbon magnetic paddle shifters with ball-bearings
6x Push buttons

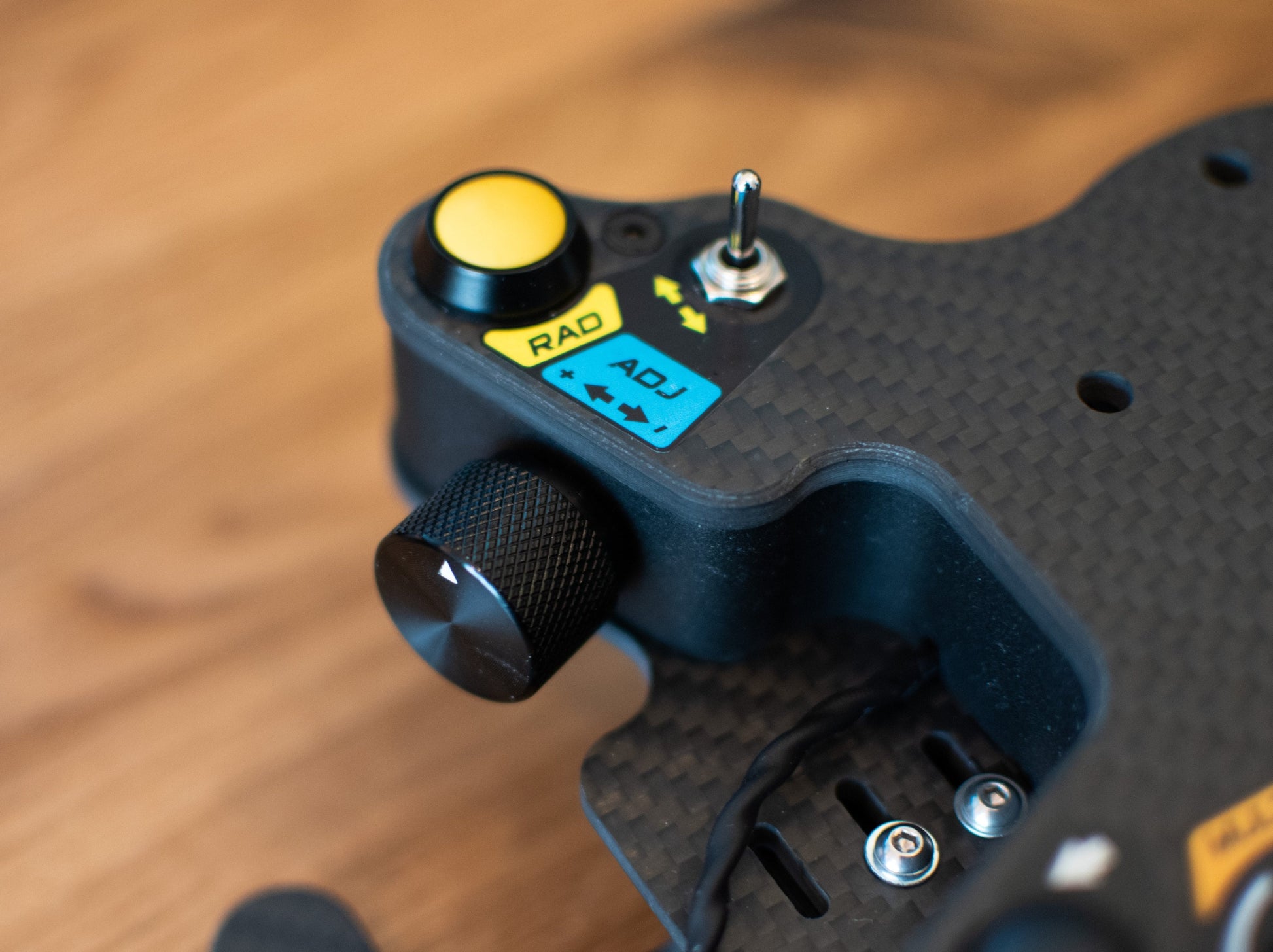

2x side CTS rotary encoders

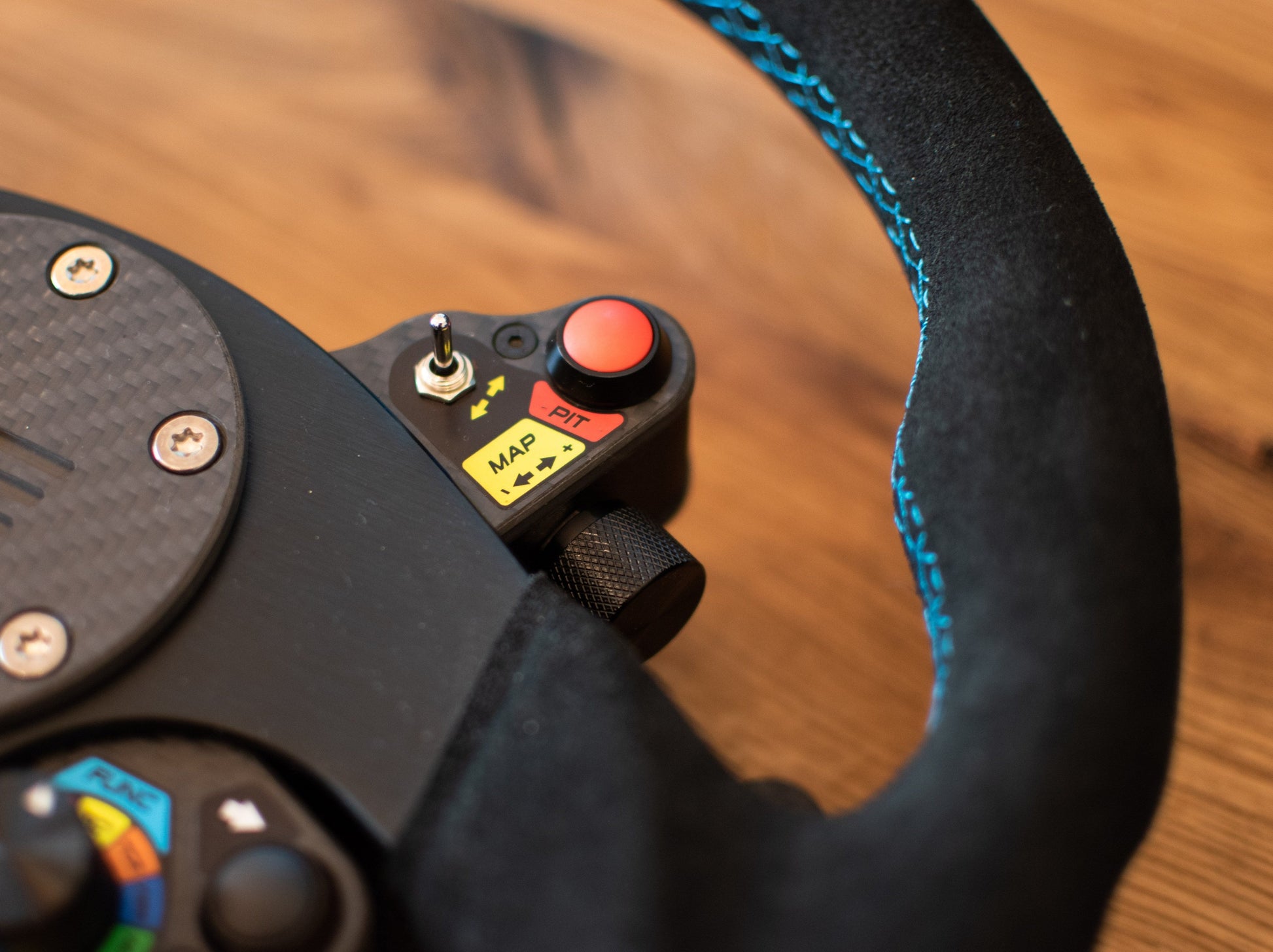

2x 2-way toggle switches

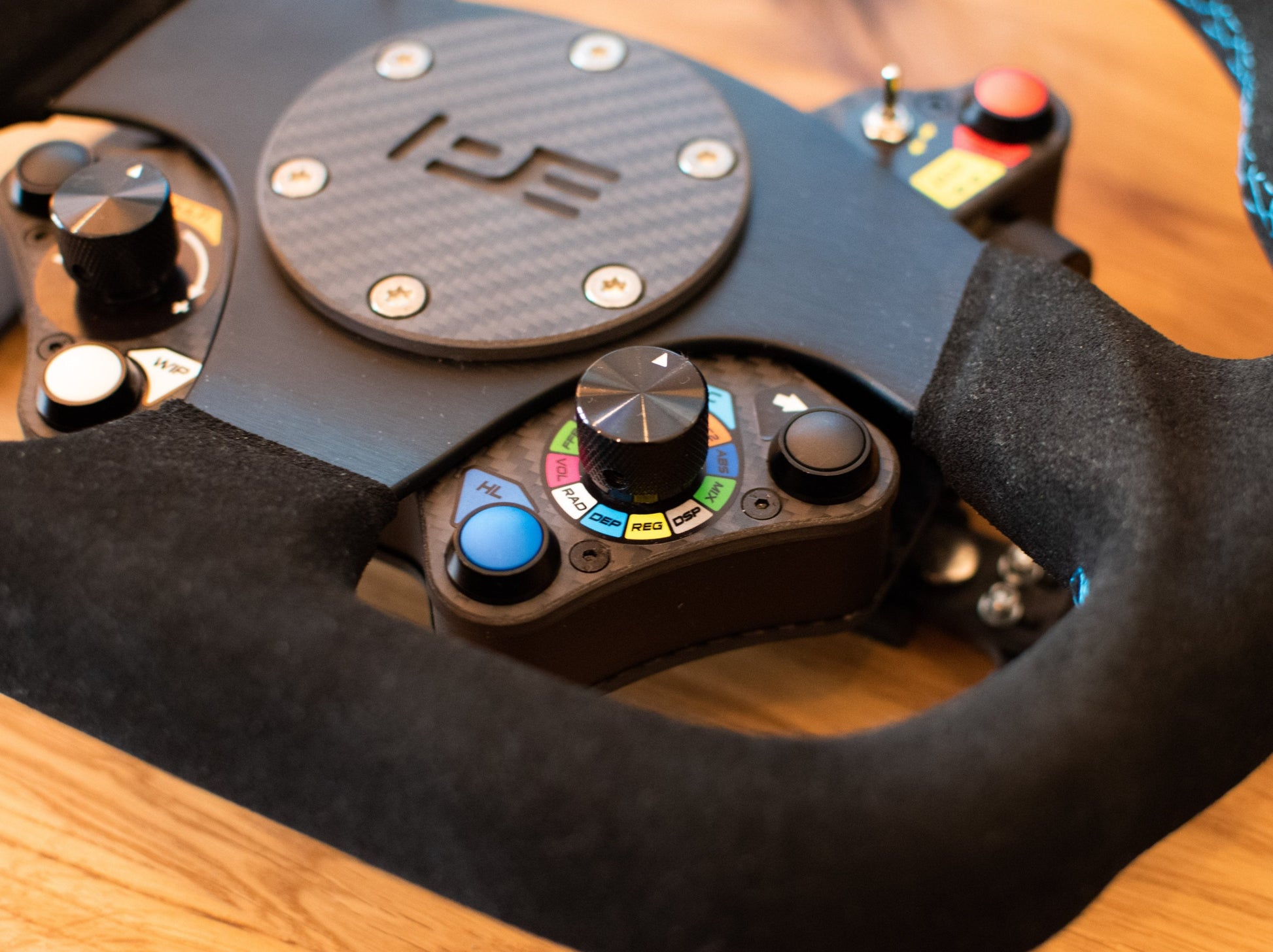

Multi-function rotary switch pair: right front rotary acts as function selector switch (12 functions) while you can adjust the selected parameter with the left front rotary (so these 2 rotaries are working as 12x2 = 24 inputs)
70mm PCD mount
Based on STM32F103C8T6 board (Minimum System/Bluepill)

Content

Detailed assembly guide (26 pages, ~45 pictures)
Full BOM (component list with links)
Files for 3D printing (.stl, printable on 200x200mm bed)
Files for carbon fiber/aluminum parts manufacturing (.step)
Daughater PCB fabraication files for easier wiring (costs about 5 USD)
Firmware binary and source code
Sticker designs (printable, vector format)

Compatiblity

Cube Controls GT-Cube Pro Rim
Cube Controls GT-Cube Sport Rim
Fanatec Podium Wheel Rim R300
Fanatec Clubsport Wheel Rim GT
Fanatec Podium Wheel Rim Porsche 911 GT3 Cup
MOMO MOD 30
OMP Superquadro
OMP Ompod/2042/N 320
Base: any wheelbase with 70mm PCD QR
PERSONAL USE LICENSE ONLY

The files are for personal use only, non-commercial, not for resale!

You cannot sell the digital model, a derivative or adaptation of the model, nor can you sell prints/makes of the model.

This is not a physical product. Digital downloads will be sent via email automatically after completing payment.
